Product Highlights
–
Natural Gas
SV9500, SV9600
Description
–

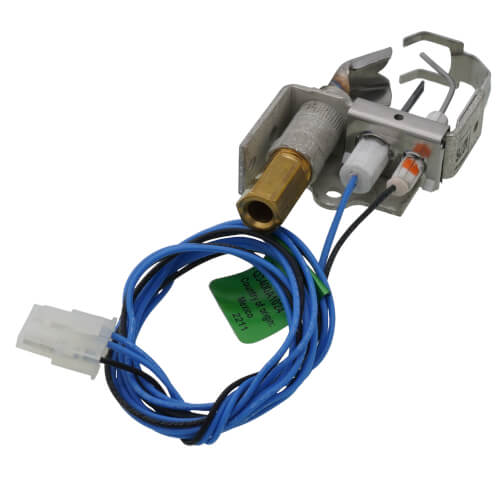

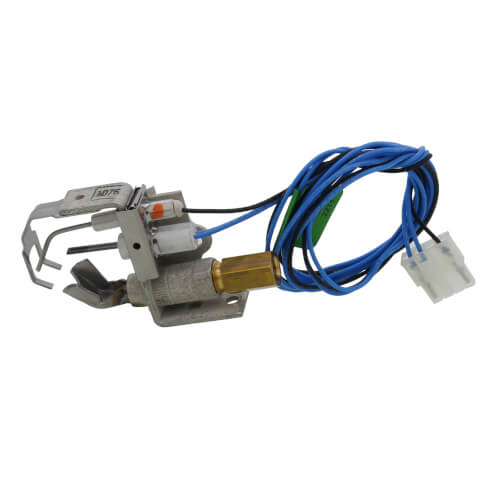

Pilot Burner for natural gas with a BCR-18 orifice, front single tip style, "C" mounting bracket and primary aeration.
Overview:
These SmartValve System pilot burners provide pilot flame ignition and sensing for SV9500/SV9600 Systems. They consist of replaceable igniter-flame rod assembly, bracket assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring clip. The igniter lights the pilot burner. The flame rod proves the pilot flame and the pilot flame lights the main burner.
Features:
Used with SV9500/SV9600 SmartValve System.
Replaceable Igniter-Flame Rod Assembly (Q3400A).
Integral keyed plug provides quick, convenient connection of igniter and sensor to SV9500/SV9600.
Q3450 has front or 20 degree right, left flame pattern.
Natural and LP gas orifices available.
Variety of target styles available.
Variety of mounting brackets available.
Overview:
These SmartValve System pilot burners provide pilot flame ignition and sensing for SV9500/SV9600 Systems. They consist of replaceable igniter-flame rod assembly, bracket assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring clip. The igniter lights the pilot burner. The flame rod proves the pilot flame and the pilot flame lights the main burner.
Features:
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Compression Fitting Size: | 1/4" |
| Direction of Front Tip: | Front |
| Aeration: | Primary |
| Tip Style: | Single |
| Ignition Wire Length: | 30" |
| Pilot BTU: | 1000 |
| Used With: | SV9500 SV9600 |
