$101.03 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
2-11/16"
3-7/16" Depth
Description
–
Provide general purpose and heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.
Specifications
Features
Specifications

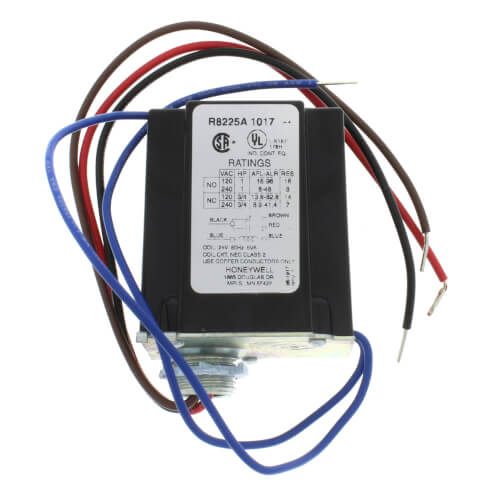

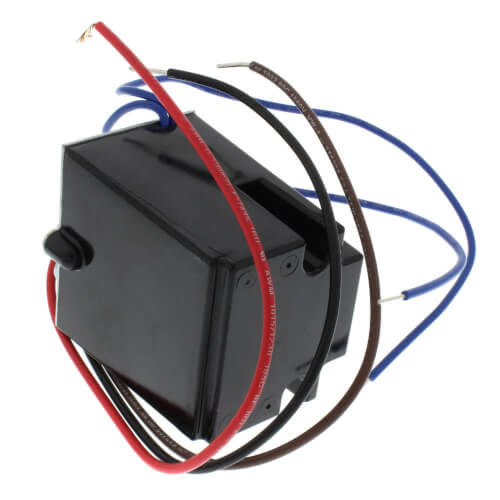

- Description 24 V Fan Relay with SPDT switching
- Coil Ratings Voltage: 24v
- Switching: SPDT
- Electrical Connections: Leadwires
- Electrical Ratings Contacts (Full Load): N.O. 8.0A, N.C., 7.0A, Aux. 2.0A @ 240 Vac; N.O. 14.0A, N.C. 14.0A, Aux. 3.0A @ 120 Vac
- Electrical Ratings Contacts (Locked Rotor): N.O. 48.0 A, N.C. 42.0 A, Aux. 12.0 A @ 240 Vac; N.O. 84.0 A, N.C. 84.0 A, Aux. 18.0 A @ 120 Vac
- Electrical Ratings Contacts (Resistive): N.O. 8.0 A, N.C. 7.0 A, Aux. 2.0 A @ 240 Vac; N.O. 16.0 A, N.C. 14.0 A, Aux. 3.0 A @ 120 Vac
- Frequency: 60 Hz
- Dimensions: 2- 11/16 in. high x 2- 1/2 in. wide x 3- 7/16 in. deep
- Temperature Ratings: 115 F
Features
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
- Untaped coil assures cooler operation.
- Laminated magnet construction for higher efficiency.
- Base designed for easy replacement of competitive relays.
- Double quick-connect coil terminals.
- Plug compatible with Steveco 90-340 and Mars 90340.
Specs
–
| Application: | 24v Air Conditioning Circuits Refrigeration |
|---|---|
| Voltage: | 24V |
| Type: | SPDT |
| Electrical Ratings (ALR): | 18 A @ 120 VAC (Aux) 84 A @ 120 VAC (N.O) 84 A @ 120 VAC (N.C) 42 A @ 240 VAC (N.C) 12 A @ 240 VAC (Aux) 48 A @ 240 VAC (N.O) |
| Electrical Ratings (Resistive): | 7 A @ 240 VAC (N.C) 2 A @ 240 VAC (Aux) 8 A @ 240 VAC (N.O) 16 A @ 120 VAC (N.O) 3 A @ 120 VAC (Aux) 14 A @ 120 VAC (N.C) |
| Coil Ratings: | 24v |
| Wiring: | leadwires |
| Height: | 2-11/16" |
| Width: | 2-1/2" |
| Depth (Inches): | 3-7/16" |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 115°F |
| Electrical Ratings (AFL): | 14 A @ 120 VAC (N.O) 14 A @ 120 VAC (N.C) 3 A @ 120 VAC (Aux) 7 A @ 240 VAC (N.C) 8 A @ 240 VAC (N.O) 2 A @ 240 VAC (Aux) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Good Replacement For GE 3ARR4 FA32 Relay
I needed a replacement for a GE 3ARR4 FA32 spst Relay which apparently is no longer available. While this relay is spdt, it was usable for my purpose by using only the normally open wire. While this relay does draw a bit more current than the GE it replaces, it still was suitable for my purpose. I would definitely recommend this a a replacement.
Den
Setauket, NY
10 months ago
Verified Buyer
Was this review helpful to you?
STILL OUT THERE
never know when you need it. had a customers blower down. if i had this relay i would have been out the door in 30 minutes instead of a rewireing fancenter upgrade 2 hours later. [...] brand new ready for the next one.
co2x3
danbury, ct
16 years ago
Verified Buyer
Was this review helpful to you?
