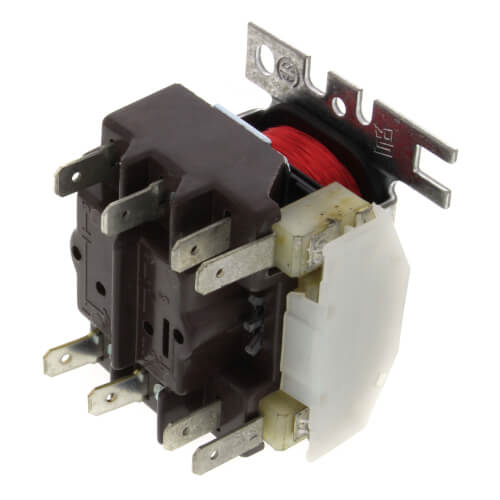

24v Electric Heater Relay w/ DPST Switching
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$77.22 each
In Stock
Get 16 Wed, Dec 20
More Available
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24v
2-3/16"
2-1/4" Depth
Normally Closed
Description
–
Normally Closed Relays And Contactors For Load Control Systems.
Features
Features
- Close and leave load operating in case of wiring or control problem, or relay malfunction.
- Consume no power while load is powered; require power only to shed load.
- Operate directly from a pilot duty rated relay in the load control system.
Specs
–
| Application: | Refrigeration Air Conditioning |
|---|---|
| Voltage: | 24v |
| Type: | DPST |
| Electrical Ratings (AFL): | 7 A @ 120 VAC 7 A @ 277 VAC 7 A @ 240 VAC 7 A @ 208 VAC 3.5 A @ 480 VAC 2.8 A @ 600 VAC |
| Electrical Ratings (ALR): | 35 A @ 120 VAC 17.5 A @ 480 VAC 35 A @ 208 VAC 14 A @ 600 VAC 35 A @ 240 VAC 35 A @ 277 VAC |
| Electrical Ratings (Resistive): | 10 A @ 600 VAC 12.5 A @ 480 VAC 25 A @ 277 VAC 25 A @ 120 VAC 25 A @ 208 VAC 25 A @ 240 VAC |
| Coil Ratings: | 24v |
| Hertz: | 50 60 |
| Height: | 2-3/16" |
| Width: | 2-3/32" |
| Depth (Inches): | 2-1/4" |
| Wiring: | #10 Combo Head Screws |
| Operating Temp Range: | -40° to 165°F |
| Position: | Normally Closed |
