Description

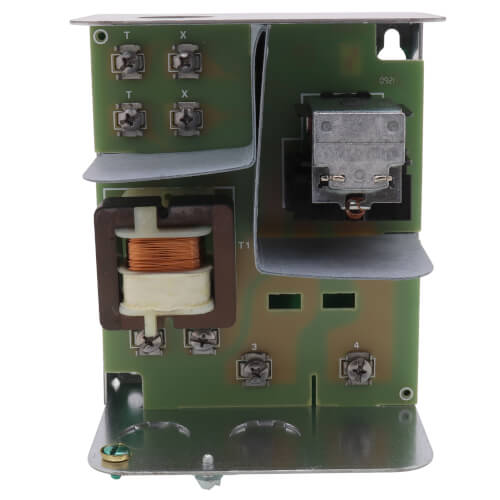

Provides intermediate switching of a line voltage device from a low voltage controller.

Features
  • Integral transformer provides low voltage power for control circuit
  • The RA832A is a tpst relay. One relay pole is designed for low voltage or millivoltage (Powerpile) auxiliary load. Two other relay poles are for line voltage loads
Product Specifications
  • Description: Switching Relay with internal transformer, for switching two line voltage loads having a common power source
  • Application Provide intermediate switching of a line voltage device form a low voltage controller
  • Electrical Connections (main) 2-Wire Switching Action DPST. one pole line voltage, the other low voltage or millivoltage
  • Coil Ratings Current 0.4A
  • Coil Ratings Voltage 24 Vac
  • Temperature Range (F) 115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz. Temperature Range (C) 46 C maximum ambient for 60 Hz., 41 C maximum ambient for 50 Hz.
  • Dimensions (in.) 5 1/4 in. high x 4 1/4 in. wide x 2 5/16 in. deep
  • Dimensions (mm) 133 mm high x 108 mm wide x 59 mm deep
  • Electrical Ratings - Primary Voltage 240V. 50/60 Hz
  • Approvals, Underwriters Laboratories Inc Listed: File No. E4436, Guide No. XAPX
  • Approvals, Canadian Standards Association Certified: File No. LR1620

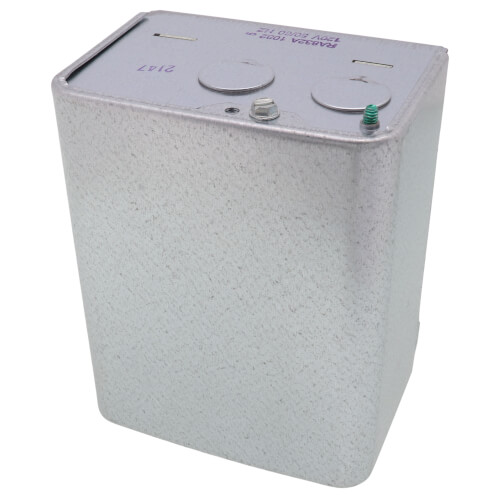

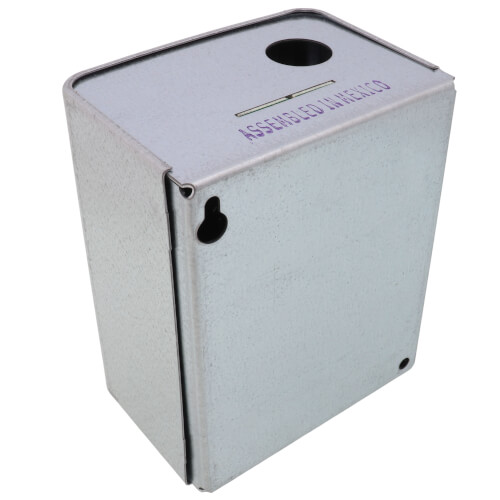

  • Includes Integral transformer, enclosure
  • Tradeline Value: Tradeline
  • Electrical Ratings (Maximum Input) 5.0 W
  • Electrical Ratings (Primary Voltage) 240V, 50/60 Hz
  • Contacts Electrical Rating Main Contacts 120 Vac 7.4A AFL. 44.4A ALR. 10A Resistive
  • Contacts Electrical Rating Main Contacts 240 Vac 3.7A ALF. 22.2A ALR. 6.0A Resistive
  • Contacts Electrical Rating Secondary Contacts Pilot Duty Rat 50 VA @ 24V
  • Contacts Electrical Rating Secondary Contacts Dc Rating 1A @ 12 Vdc
  • Contacts Electrical Rating Secondary Contacts Millvolt Ratin 300 mA min. @ 750 mV
  • Contacts Electrical Rating Contacts Max. Connected Load 2000 VA (120 Vac to 240 Vac) Electrical Rating: Maximum Input 5.0W
Hide Description
Manuals (1)
Specs
Application:

Zoning

Frequency:

50-60 Hz

Zones:

2

Width:

4-1/4"

Height:

5-1/4"

Amperage:

7.4

Power Method:

120V

Voltage:

240v

Depth (Inches):

2-5/16"

Ambient Conditions:

105 F Max for 50 Hz

115 F max for 60 Hz

105°-115°F Max

Relays:

DPST

Switch Action:

DPST; one pole line voltage the other low voltage or millivolt

×
