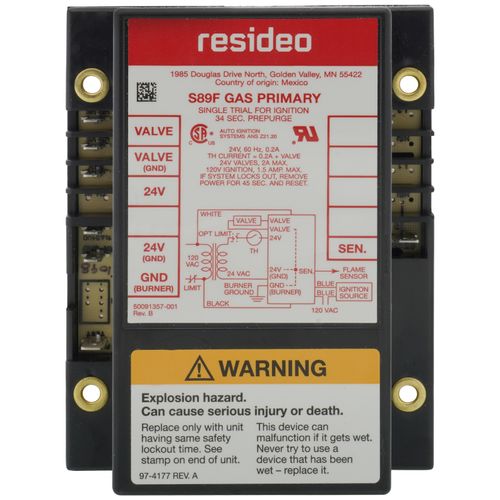

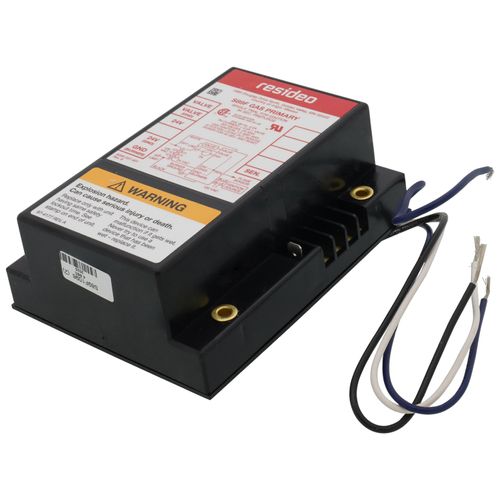

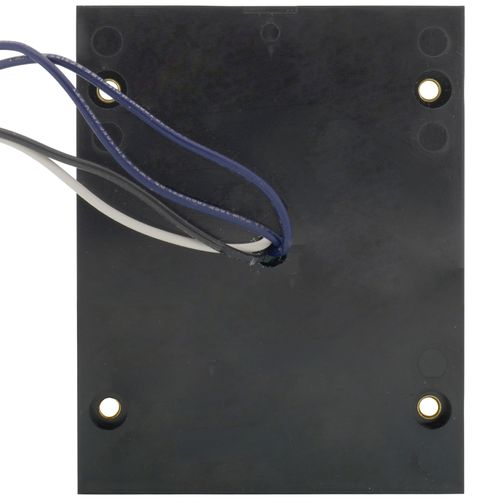

Two Rod Direct Spark Ignition Control w/ 4 Second Trial Time and Lock Out Timing, S89F1098
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
S89F1098 has been discontinued
Discontinued November 18, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
Direct Spark Ignition
Description
–
Provide electronic control of direct spark ignition systems, with external spark transformers, used on gas-fired furnaces, boilers, conversion burners and other heating appliances.
Specifications
Features
Specifications
- Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
- Ignition System Type: Direct Spark Ignition
- Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
- Typical Gas Control: VR8205, VR8305
- Type of Gas: Natural or LP
- Ignition Source: External (120 VAC powered) High Voltage Spark Generator
- Ignition Trials To Lockout: 1
- Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Max Ambient Temperature: -40 F to +175 F
- Flame Failure Re-ignition Time: 0.8 sec.
- Maximum Valve Load @ 24 Vac (Amps): 2A
Features
- Controls ignition sequence and gas control operation in direct spark ignition systems.
- Control separate 120 Vac spark generator that provides high voltage potential for main burner ignition.
- Lockout after one trial for ignition if main burner fails to ignite.
- Reset from thermostat after lockout. Use separate electrodes for spark ignition and flame sensing.
- Use any 24 Vac combination gas control designed for direct spark applications and rated at 2.0A or less.
Specs
–
| Ignition Trial Time: | 4 Seconds |
|---|---|
| Lockout Timing: | 4 Seconds |
| Flame Sense: | Two Rod |
| Pre-Purge Time: | 30 sec. min |
| Ignition Type: | Direct Spark Ignition |
