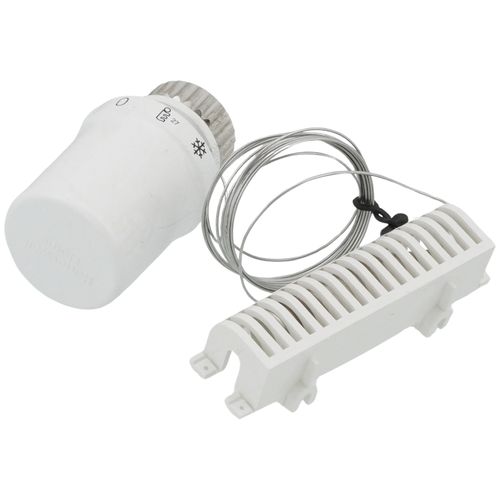

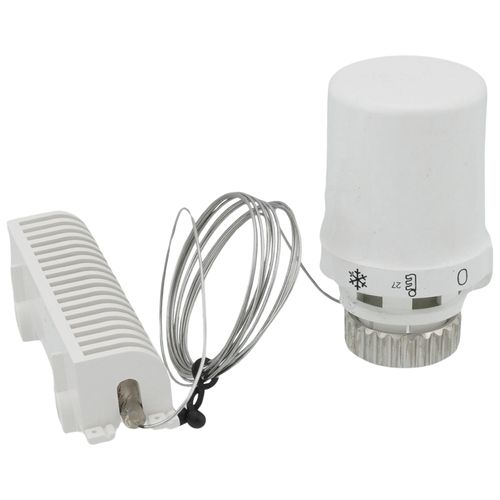

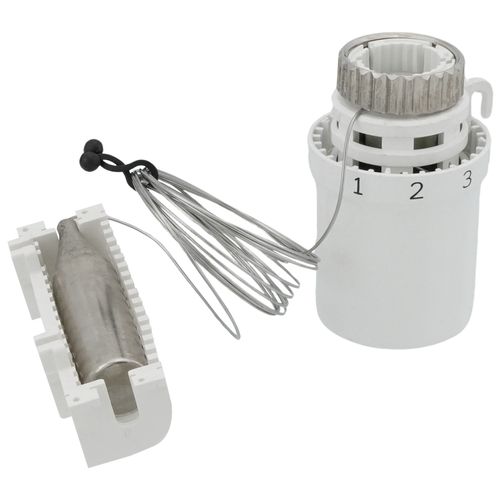

Thermostatic Head for M30X1.5 w/ Remote Sensor, T301920W0

Thermostatic radiator heads are self-actuating controllers which regulate the flow of hot water through thermostatic radiator valves to continuously control the room temperature to the set-point selected on the head. The Thera-6 is a head with compact size, sleek design, energy efficiency and durability, which make it an ideal choice for residential heating applications.

Features:

• Premium quality, liquid-filled, German-made sensor with high setting force and minimum hysteresis
• Handle made of non-yellowing ASA plastic for permanent good appearance
• Internal structural ring from high-strength plastic for long durability
• Highest-class Control Accuracy per amended EN215
• Compact size to fit most installations even with limited space available
• Easy to operate with ergonomic torque to turn the head to desired setting
• Temperature range limitation by accessory range locks
• Frost protection setting
• A high-stroke variant enabling higher 2K p-band flows and proportional regulation with small p-band
• Standard M30 x 1.5 connection to the valve body according to EN 215
• Variants with connection for Danfoss RA and Macon/MMA valves
• Variants with remote sensor on a 6.6 ft (2 m) capillary
• Compatible with all MNG, Braukmann, Honeywell and Honeywell Home thermostatic valves with M30x1,5 connection produced by Resideo and its predecessors since 1974

Specifications:

• Application: A control with remote temperature sensing and integral set point. Adjustable limits.
• Dimensions (in.): 3.07 H x 1.95 Dia. (not including remote)
• Dimensions (mm): 48 H x 49.5 Dia. (not including remote)
• Temperature Range (F): 34 F to 82 F
• Temperature Range (C: )1 C to 28 C
• Used With: V2000, V100CommentsThera-6 Family
• Connection Size (in.): M30 x 1.5
• Connection Type: Threaded
• Capillary Length (ft): 6 ft. 7 in.
• Capillary Length (m): 2.0 m
• Replaces: T100F1395
• Scale Markings: 0 - * - 1 … 5
• Collar Diameter (in.): 1 3/16 in.
• Collar Diameter (mm): 30 mm
• Materials (Body): ASA Thermoplastic
• Sensor (Integral or Remote): Remote
• Setpoint (Integral or Remote): Integral
