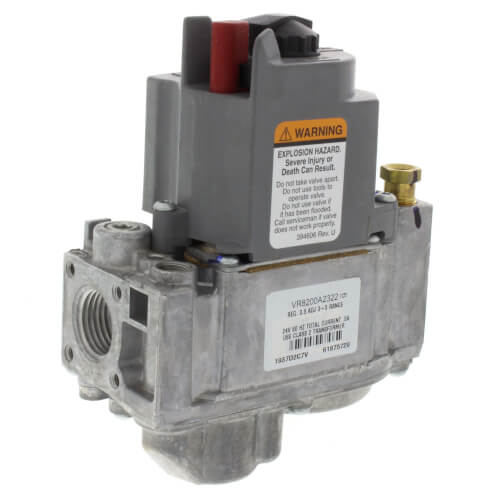

1/2", 24 Vac Standing Pilot Gas Valve - Standard Opening, VR8200A2322
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$221.72 each
Backorder
MANUALS (4)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2" NPT, 1/2"
1/2"
24V
Standing Pilot
Straight-Through
Description
–
Overview
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features
Specifications
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features
- Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
- Compact size.
- Provides two automatic valves.
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meets codes requiring dual safety shut-off.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
Specifications
- Application: Single Stage
- Dimensions (in.): 5 3/16 in high x 4 1/8 in. wide x 3 1/4 in. deep
- Dimensions (mm): 132 mm high x 104 mm wide x 83 mm deep
- Includes: Natural to LP Conversion Kit
- Item Type: Product
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
- Frequency: 60 Hz
- Approvals, Underwriters Laboratories Inc.: UL Component Recognized MCCZ2.MH5323
- Approvals, CSA: CSA International: 112395
- Electrical Connections: 1/4 in. quick-connect male terminals
- Voltage: 24 Vac
- Operating Temperature Range (F): 0 F to 175 F
- Operating Temperature Range (C): -18 C to +79 C
- Body Pattern: Straight-through
- Opening Characteristics: Standard Opening
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Pressure Tapping: 1/8 in. NPT with plug
- Type of Fuel: Natural (LP with included conversion kit)
- Capacity (kBtuh): At 1 in. wc p.d.-- 130,000 BTUh: 20,000 BTUh minimum: 200,000 BTUh maximum Natural Gas
- Approvals, Australian Gas Association: 4752
- Pressure Regulator: Standard
- Pressure Regulator Setpoint (in. wc): 3.5 in. WC
- Pressure Regulator Setpoint (kPa): 0.87 kPa
- Ignition Type: Standing Pilot
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Inlet Size: | 1/2" NPT 1/2" |
| Outlet Size: | 1/2" |
| Ignition Type: | Standing Pilot |
