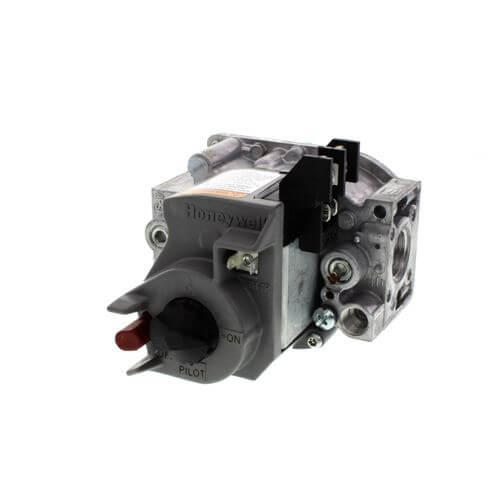

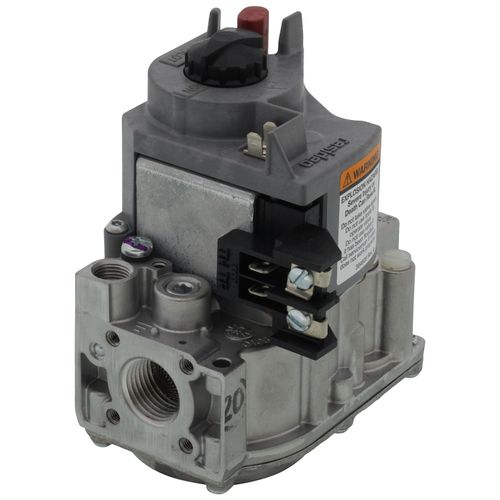

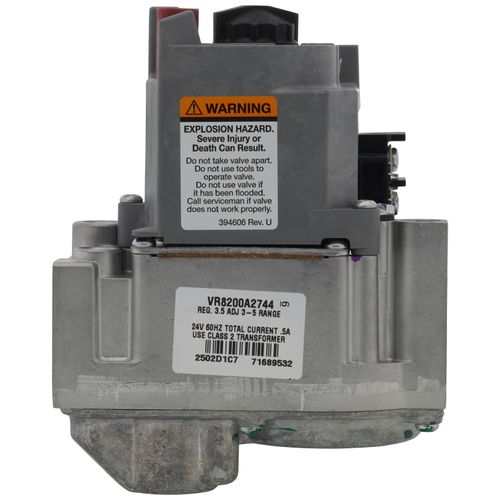

1/2", 24 Vac Standing Pilot Gas Valve Body, VR8200A2744
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$162.61 each
In Stock
Order by today, receive Tuesday
MANUALS (5)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2"
1/2"
130000 BTU Capacity
24V
Standing Pilot
Description
–
24 Vac Dual Standing Pilot Gas Valve with 1/2 in. x 1/2 in. inlet\outlet, standard opening and 3.5 in. wc pressure regulator setting
Features
Features
- Combination gas controls for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
- Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
- Type: Single Stage
Ignition Type: Standing Pilot
Type of Gas: Natural
Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
Body Pattern: Straight-through
Opening Characteristics (standard, step): Standard
Capacity @ 1 in. p.d.: 130,000 BTU/hr; 20,000 BTU/hr minimum
Pressure Ratings: ½ psi, or 3.5 kPa
Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Pressure Tapping: 1/8 in. NPT with plug
Electrical Connections: Combination screw and 1/4 in. male quick connects
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Anticipator Setting: 0.5 A
Temperature Range: 0° to 175°F, or -18° to +79°C
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep

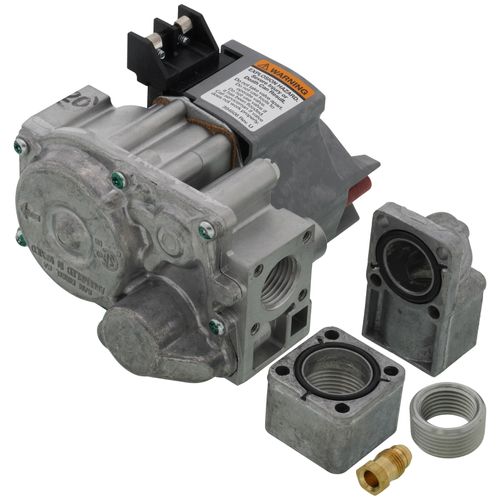

Includes: 1/2 in. x 3/8 in. reducer bushing; 39369014 bag assembly-3/4 in. straight flange with O ring, screws and wrench; and 393691 Natural to LP gas conversion kit; also includes 3/4 in. angle flange
Approvals, American Gas Association IAS: AGA Design Certified: File no. L2025006; CGA Design Certified: File no. L2025006; UL Component Recognized: File no. MH5323
Approvals, Canadian Gas Association: UL Component Recognized: File no. MH5323
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 130000 |
| Inlet Size: | 1/2" |
| Outlet Size: | 1/2" |
| Ignition Type: | Standing Pilot |
