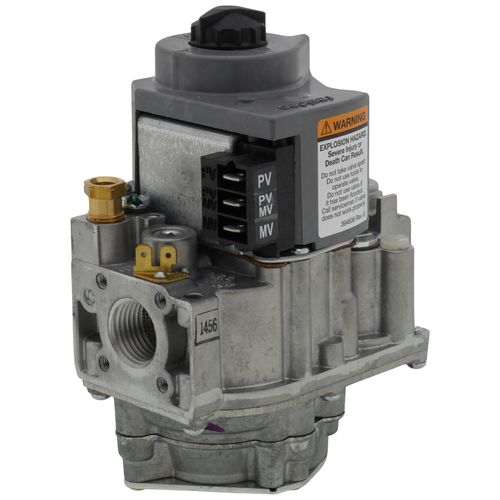

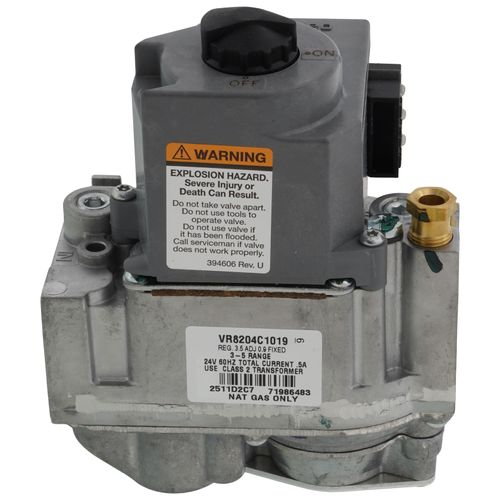

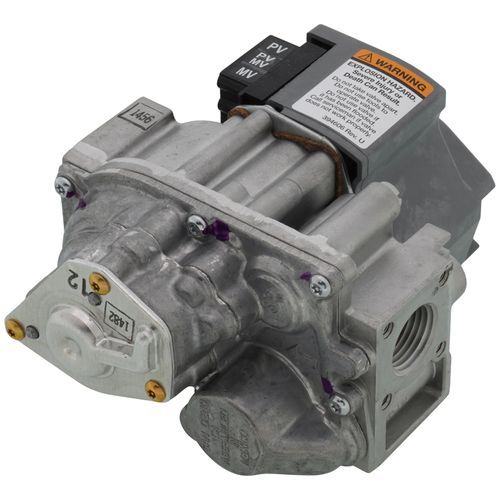

24 Vac Dual Intermittent Pilot Gas Valve (1/2" x 1/2" inlet/outlet), VR8204C1019
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$245.89 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2"
1/2"
150000 BTU Capacity
Intermittent Pilot
Straight-Through
Description
–
24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, step opening and Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc pressure regulator setting.
Overview:
Combination gas controls for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 20 to 200 cfh.
Features:
Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
Use with S86F,H; S8600F,H and S8610 Control Modules.
Compact size.
Provide two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meet codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
All adjustments and wiring connections are accessible from top of control.
ON-OFF lighting sequence.
Overview:
Combination gas controls for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 20 to 200 cfh.
Features:
Specs
–
| Type: | Single Stage |
|---|---|
| Ignition Type: | Intermittent Pilot |
| Fuel Type: | Natural Gas |
| Body Pattern: | Straight-Through |
| Pressure Rating: | 1/2 psi |
| Temperature Range (F): | 0°F to 175°F |
| Max Temp (F): | 175°F |
| Min Temp (F): | 0°F |
| Inlet Size: | 1/2" |
| Outlet Size: | 1/2" |
| Capacity (BTU): | 150000 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
yes
all good
showknufff
MO
4 years ago
Verified Buyer
Was this review helpful to you?
It works.
What can I say it works great.
Tess
El Dorado Springs, Missouri
6 years ago
Verified Buyer
Was this review helpful to you?
Excelent
I would definitely use Supply house for any future stock parts needed.
I needed this gas valve that no none had in stock locally. I received it the next day even in a real bad snow storm.
mphvac
Joliet Illinois
9 years ago
Verified Buyer
Was this review helpful to you?
Perfect replacement part for cheaper
Very easy to bolt on.. worked well...
Eustisva
Pa
10 years ago
Verified Buyer
Was this review helpful to you?
Furnace works great
nearly an exact replacement,nice to have heat again
blades
east bethel ,mn
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: Does this valve come with the LP conversion?
Asked by tim 8 years ago
Add your answer
Verified Reply- Supplyhouse StaffIt does not
Was this review helpful to you?
Q: please, what is replacement part for VR8204C1084 ? Thanks.
Asked by paul 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes that is the functional replacement, not a direct replacement. Your valve is discontinued.
Was this review helpful to you?
Q: Will this fit VR8204M2909
Asked by Wayland 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, the recommended replacement for the VR8204M2909 is VR8204M1091 . This replacement does not have silver plated contacts as the VR8204M2909 did. This replacement is available here: http://www.supplyhouse.com/Honeywell-VR8204M1091-Standard-Dual-Intermittent-Pilot-Gas-Valve-13665000-p
Was this review helpful to you?
Q: Will this replace the VR8204C6000?
Asked by Rick 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffhttps://www.supplyhouse.com/Burnham-81660145-Natural-Gas-Valve-IN3-IN6-VR8204C3007 is the correct replacement.
