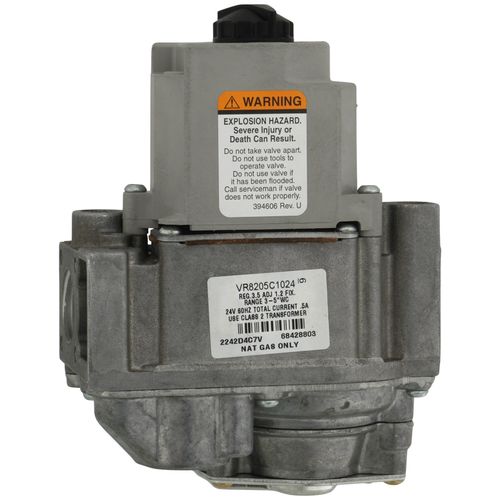

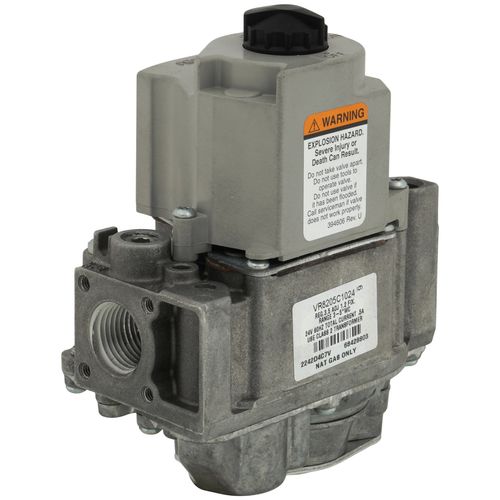

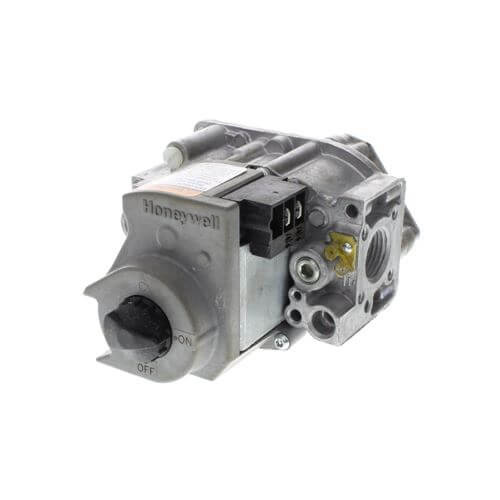

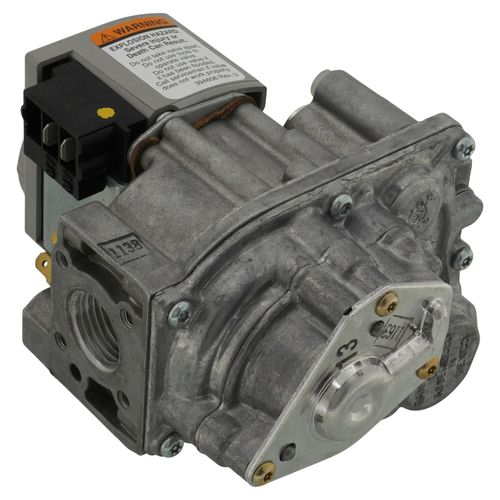

Step Opening Dual Direct Ignition Gas Valve, VR8205C1024
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$246.27 each
In Stock
Order by today, receive Tuesday
MANUALS (3)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2", 1/2" NPT
1/2"
24V
Direct Spark Ignition
Straight-Through
Description
–
Product Overview:
Product Features:
Product Specifications:
- Combination gas controls for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances with capacities from 20 to 200 cfh
Product Features:
- Controls include manual valve, two automatic operators, and pressure regulator
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- Adjustments and wiring connections are accessible from top of the control
- ON-OFF lighting sequence
Product Specifications:
- Description: 24 Vac Dual Direct Ignition Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, step opening and Full Rate: 3.5 in. wc; Step Setting: 1.2 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Direct Ignition
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
- Body Pattern: Straight-through
- Opening Characteristics: Step Opening
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): Full Rate: 3.5 in. wc; Step Setting: 1.2 in. wc
- Pressure Regulator Setting (kPa): Full Rate: 0.87 kPa; Step Setting: 0.30 kPa
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Connections: 1/4 in. quick-connect male terminals
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Anticipator Setting: 0.5 A
- Temperature Range (F): 0 F to 175 F
- Temperature Range (C): -18 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 4 15/16 in. high x 4 1/8 in. wide x 2 11/16 in. deep
- Dimensions (mm): 125 mm high x 104 mm wide x 69 mm deep
- Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006
- Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Type: | Direct Spark Ignition |
| Inlet Size: | 1/2" 1/2" NPT |
| Outlet Size: | 1/2" |
