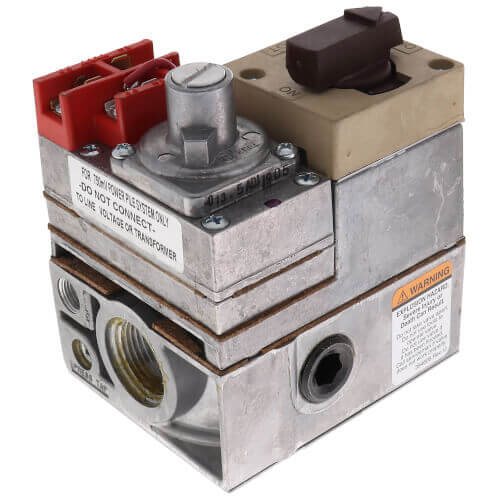

Step Opening PowerPile Millivolt Combination Gas Valve - 3/4" NPT x 3/4" NPT, VS820C1100
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,299.99 each
Backorder
MANUALS (3)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
3/4"
3/4"
335000 BTU Capacity
Description
–
Product Overview:
Product Features:
Product Specifications:
- These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mv Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.
Product Features:
- Includes pilot flow adjustment screw
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control
- Add separate energy cutoff (ECO) where codes call for dual safety shutoff
- Complete safety shutoff on pilot flame failure
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- ECO connector for V800 models, Part No. 392451-1
Product Specifications:
- Description: 3/4 in. NPT x 3/4 in. NPT PowerPile Millivolt Combination Gas Valve with Step: 0.9 in. wc non-adjustable; Full rate: 3.5 in. wc, 3-5" adjustable pressure regulator setting
- Application: Self-powered automatic control - Use with 750 mV pilot generator
- Type of Gas: Natural
- Pressure Regulator: Step Opening
- Electrical Ratings: 750 mV
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Body Pattern: Straight-through - multi-tapped with 1/2 in. right and left outlets plugged, except as noted
- Pressure Tapping: 1/8 in. npt with plug
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Inlet/Outlet Size (in.): 3/4 in. NPT x 3/4 in. NPT with 1/2 in. NPT side outlets
- Pressure Regulator Setting (psi): Step: 0.9 in. wc non-adjustable; Full rate: 3.5 in. wc, 3-5" adjustable
- Pressure Regulator Setting (kPa): Step: 0.22 kPa; Full rate: 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Electrical Connections: Terminal block has 3 combination screw and 1/4 in. quick connect terminals
- Temperature Range (F): 32 F to 175 F
- Temperature Range (C): 0 C to 79 C
- Dimensions (in.): 4 3/4 in. high x 4 1/16 in. wide x 3 3/16 in. deep
- Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
- Approvals, American Gas Association: AGA Design Certified: File no. L2025003
- Approvals, Canadian Gas Association: CGA Design Certified: File no. L2025003
- Includes: One 3/4" x 1/2" reducer bushing, one 1/2" x 3/8" reducer bushing
Specs
–
| Inlet Size: | 3/4" |
|---|---|
| Outlet Size: | 3/4" |
| Fuel Type: | Natural Gas |
| Capacity (BTU): | 335000 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4 out of 1 review
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
worked well
works well, but a little spendy
bill
becker mn
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: Does VS820-C1100 work as a replacement for VS820-C1068?
Asked by steve 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffThat valve is listed as obsolete no replacement.
Was this review helpful to you?
Q: I an looking for honeywell gas valve VS820C1068
Asked by rond 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve is obsolete with no direct replacement listed.
Was this review helpful to you?
Q: I am looking to purchase a gas valve part number is vs820c1274
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThat valve is obsolete and has been replaced by Burnham part 81660062.
