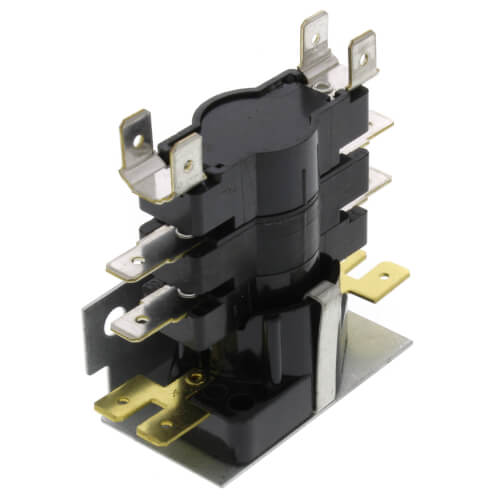

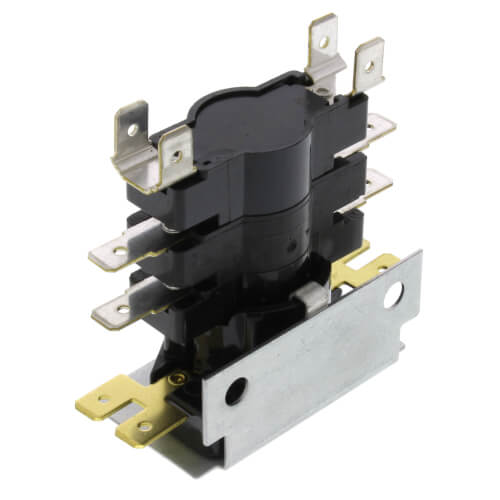

Main product image of 3PST N/O Sequencing Relay (24V), 42-23116-09
Magnifying glass
Hover image to zoom
Home
HVAC Supplies
HVAC Replacement Parts
Rheem Parts
Rheem Relays

3PST N/O Sequencing Relay (24V), 42-23116-09

Brand:
Rheem
SKU:
42-23116-09
Rating:
(5)
Q&A:
(0)
3PST N/O Sequencing Relay (24V), 42-23116-09
Magnifying glass
Hover image to zoom
$27.17 each
In Stock
In Stock
Get 14 Tue, May 27
Fast Track Logo
Order by today, receive Tuesday
Will this part work with my unit?
Click to see if this part is compatible with your unit.
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
24V

Description

–
3PST N/O Sequencing Relay (24V)
Features:
  • Mounting: Angle Bracket w/Two Mounting Holes
  • Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.55A maximum
  • Heater Voltage (V): 24
  • Contact Configuration: TPST - NO
  • No. of Poles: 3
  • On Timing - Pole 1 (seconds): 10-30
  • On Timing - Pole 2 (seconds): 10-30
  • On Timing - Pole 3 (seconds): 10-30
  • Off Timing - Pole 1 (seconds): 30-60
  • Off Timing - Pole 2 (seconds): 30-60
  • Off Timing - Pole 3 (seconds): 30-60
  • Connections: 1/4" Quick Connects
  • Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
  • Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
  • Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
  • Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
  • Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
  • Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
  • Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
  • Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
  • Motor FLA at 460V (A): Pole 1: 3 Pole 2: 3 Pole 3: 3
  • Motor LRA at 460V (A): Pole 1: 18 Pole 2: 18 Pole 3: 18
  • Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
  • Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5 Pole 3: 12.5

Specs

–
Voltage:

24V

Action:

3PST
