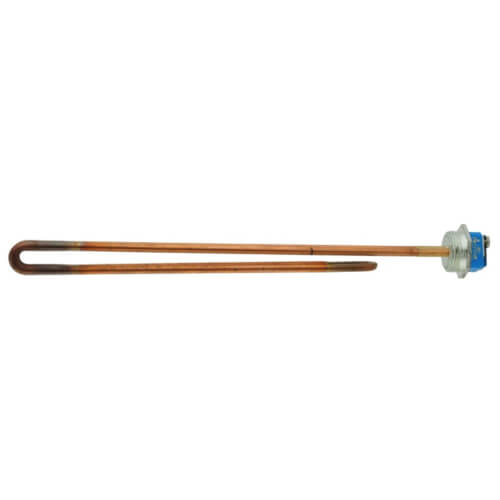

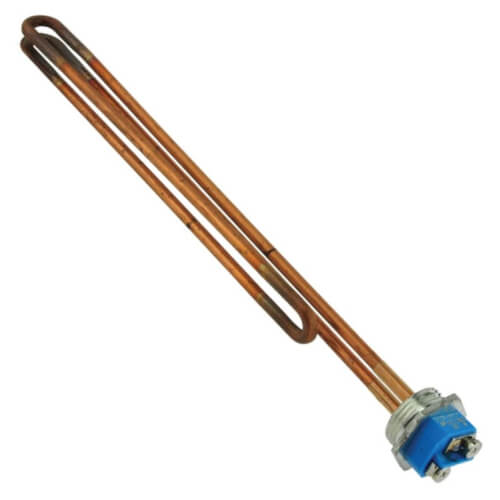

1" 5000W Copper Resistored Screw-in Element MWD (240V), AP10552NL-4
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$28.65 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
This item replaces: AP10552NL-3
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
5000 Watts
240v
Copper
Description
–
1" 5000W Copper Resistored Screw-in Element MWD (240V)
- Watt Density Classification: MWD
- Input Voltage (V): 208
- Input Voltage (V): 240
- Wattage at 208V (W): 3755
- Watt Density at 208V (W/sq. in.): 94
- Wattage at 240V (W): 5000
- Watt Density at 240V (W/sq. in. ): 125
- Cold Resistance (ohms): 11.50
- Outer Sheath Material: Copper
- Resistored: Yes
- Configuration: Foldback
- Element Diameter (in.): .260
- Element Length - Flange to Tip (in.): 13.81
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2
Specs
–
| Product Type: | Element |
|---|---|
| Wattage: | 5000 |
| Voltage: | 240v |
| Material: | Copper |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
Showing 1-1 of 1 reviews
Missing essential seal
I've been plumbing for 20 years - electrical elements come with the washer/O-ring to seal it to the tank. These were missing. Caused a bit of a scramble as this is not a part that either my local hardware or supply house carried. We eventually found an o-ring to press into service. Supplyhouse.com should either include the seal, or note it isn't there, and link to where they sell it. It isn't expensive - unless you plan on having it, and you don't. The element worked fine.
Thinklikewater
Flagstaff
7 years ago
Verified Buyer
