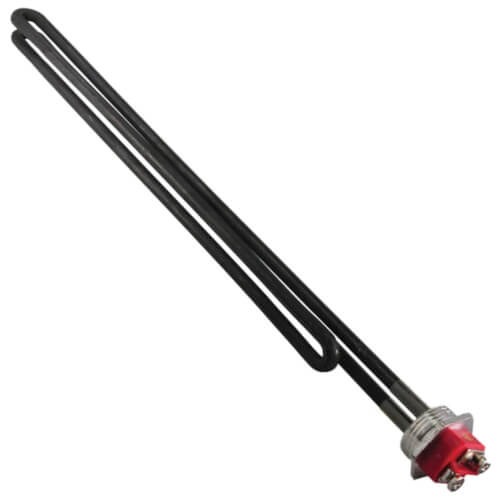

1" 4000W Stainless Steel Resistored Screw-in Element LWD (208V)
AP10867LL-4 1" 4000W Stainless Steel Resistored Screw-in Element LWD (208V)
Free Shipping On orders over $99
Need replacement parts for this unit?
- Watt Density Classification: LWD
- Input Voltage (V): 208
- Wattage at 208V (W): 4000
- Watt Density at 208V (W/sq. in.): 69
- Cold Resistance (ohms): 10.80
- Outer Sheath Material: Stainless Steel (Incoloy)
- Resistored: Yes
- Configuration: Foldback
- Element Diameter (in.): .316
- Element Length - Flange to Tip (in.): 16.08
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2
