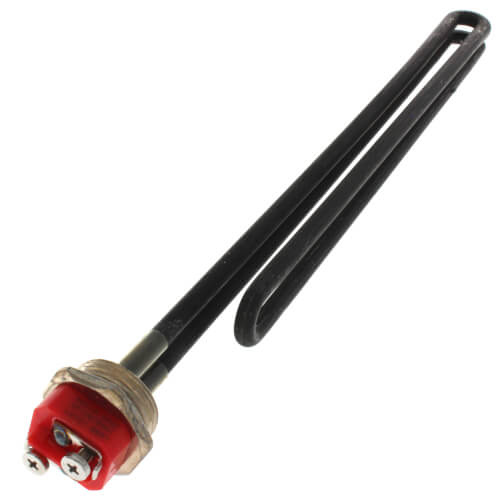

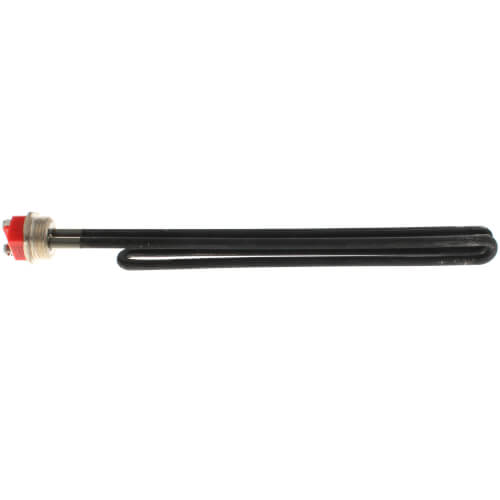

1" 6000W Stainless Steel Resistored Screw-in Element MWD (240V), AP12878QH-1
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
AP12878QH-1 has been discontinued
Discontinued October 16, 2025
This product was discontinued by the manufacturer.
This item replaces: AP12878QH
Direct Replacement:
Product Highlights
–
6000 Watts
240v
Stainless Steel
Description
–
1" 6000W Stainless Steel Resistored Screw-in Element MWD (240V)
- Watt Density Classification: MWD
- Input Voltage (V): 208
- Input Voltage (V): 240
- Wattage at 208V (W): 4500
- Watt Density at 208V (W/sq. in.): 94
- Wattage at 240V (W): 6000
- Watt Density at 240V (W/sq. in. ): 126
- Cold Resistance (ohms): 9.60
- Outer Sheath Material: Stainless Steel (Incoloy)
- Resistored: Yes
- Configuration: Foldback
- Element Diameter (in.): .316
- Element Length - Flange to Tip (in.): 13.38
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2
Specs
–
| Product Type: | Element |
|---|---|
| Wattage: | 6000 |
| Voltage: | 240v |
| Material: | Stainless Steel |
