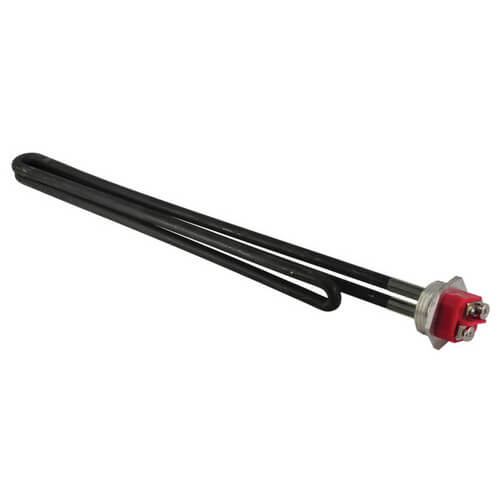

1" 6000W Stainless Steel Resistored Screw-in Element MWD (277V)
  • Watt Density Classification: MWD
  • Input Voltage (V): 277
  • Wattage at 277V (W): 6000
  • Watt Density at 277V (W/sq. in.): 125
  • Cold Resistance (ohms): 12.80
  • Outer Sheath Material: Stainless Steel (Incoloy)
  • Resistored: Yes
  • Configuration: Foldback
  • Element Diameter (in.): .316
  • Element Length - Flange to Tip (in.): 13.44
  • Mounting Type: Threaded
  • Actual Thread Size - Outside Diameter (in.): 1-9/32
  • Nominal Thread Size - (in.): 1
  • Threads per Inch: 11-1/2
  • Thread Type Series Designation: NPSM
  • Hex Head Size - Across Flats (in.): 1-1/2
Hide Description
Specs
Product Type:

Element

Wattage:

6000

Voltage:

277v

Material:

Stainless Steel

×
