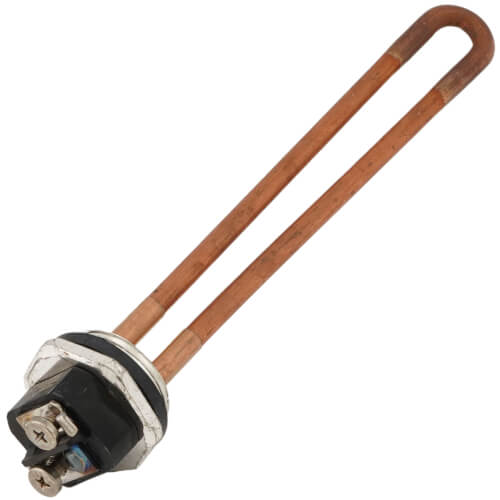

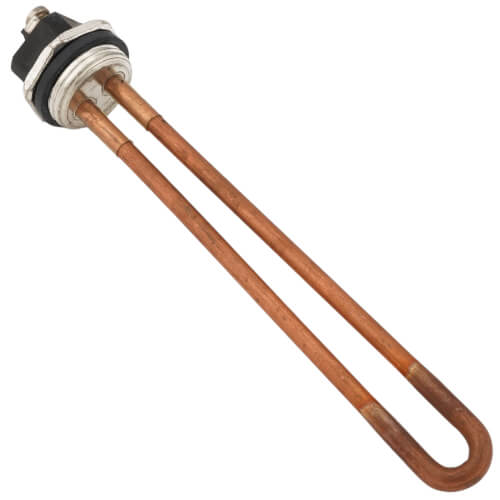

1" 2000W Copper Resistored Screw-in Element HWD (240V)SP10552GH 1" 2000W Copper Resistored Screw-in Element HWD (240V)
Free Shipping On orders over $99
Need replacement parts for this unit?
- Watt Density Classification: HWD
- Input Voltage (V): 208
- Input Voltage (V): 240
- Wattage at 208V (W): 1500
- Watt Density at 208V (W/sq. in.): 128
- Wattage at 240V (W): 2000
- Watt Density at 240V (W/sq. in. ): 171
- Cold Resistance (ohms): 28.80
- Outer Sheath Material: Copper
- Resistored: Yes
- Configuration: Straight
- Element Diameter (in.): .260
- Element Length - Flange to Tip (in.): 7.58
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2
