- Watt Density Classification: HWD
- Input Voltage (V): 208
- Input Voltage (V): 240
- Wattage at 208V (W): 2630
- Watt Density at 208V (W/sq. in.): 133
- Wattage at 240V (W): 3500
- Watt Density at 240V (W/sq. in. ): 177
- Cold Resistance (ohms): 16.50
- Outer Sheath Material: Copper
- Resistored: Yes
- Configuration: Straight
- Element Diameter (in.): .260
- Element Length - Flange to Tip (in.): 12.38
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2

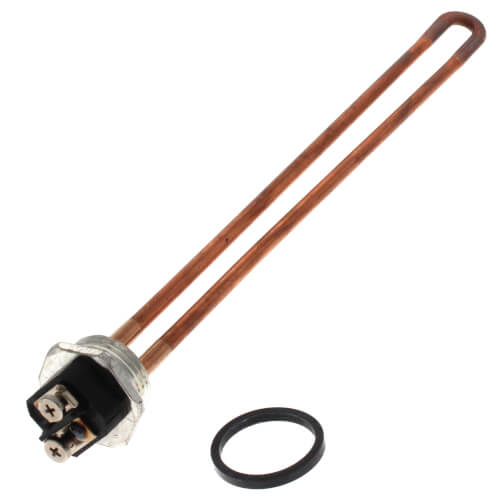

1" 3500W Copper Resistored Screw-in Element HWD (240V)SP10552KH 1" 3500W Copper Resistored Screw-in Element HWD (240V)
