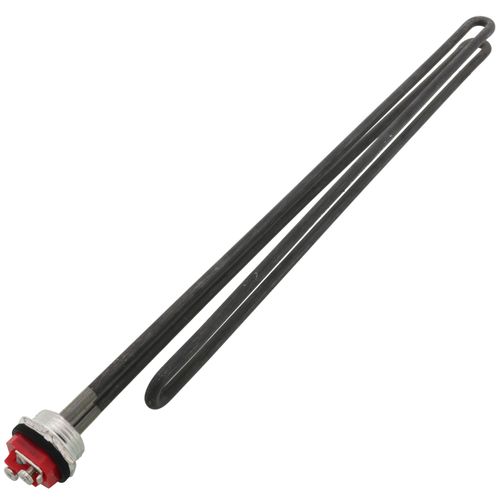

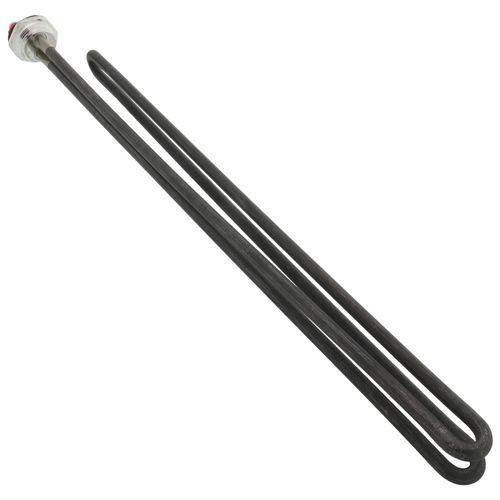

1" 5000W Stainless Steel Resistored Screw-in Element LWD (240V), SP10869NL

Resistored Stainless Steel Heating Elements Preferred Parts feature a low watt density design with an outer sheath of Incology 800 to resist failure from "dry firing". Built-in-resistor helps prolong anode life for greater tank protection and longer working life.

Specifications:

Watt Density Classification: LWD

Input Voltage (V): 208

Input Voltage (V): 240

Wattage at 208V (W): 3755

Watt Density at 208V (W/sq. in.): 53

Wattage at 240V (W): 5000

Watt Density at 240V (W/sq. in. ): 71

Cold Resistance (ohms): 11.50

Outer Sheath Material: Stainless Steel (Incoloy)

Resistored: Yes

Configuration: Foldback

Element Diameter (in.): .316

Element Length - Flange to Tip (in.): 19.24

Mounting Type: Threaded

Actual Thread Size - Outside Diameter (in.): 1-9/32

Nominal Thread Size - (in.): 1

Threads per Inch: 11-1/2

Thread Type Series Designation: NPSM

Hex Head Size - Across Flats (in.): 1-1/2
