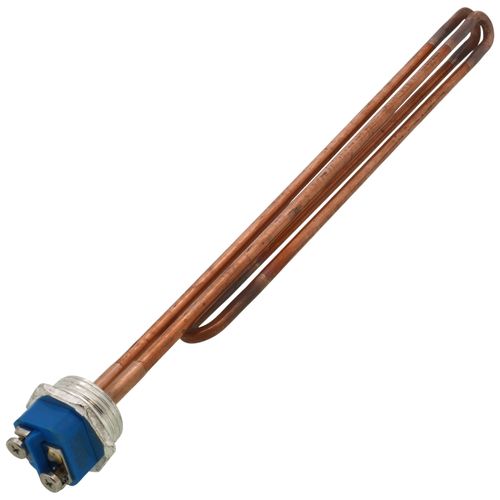

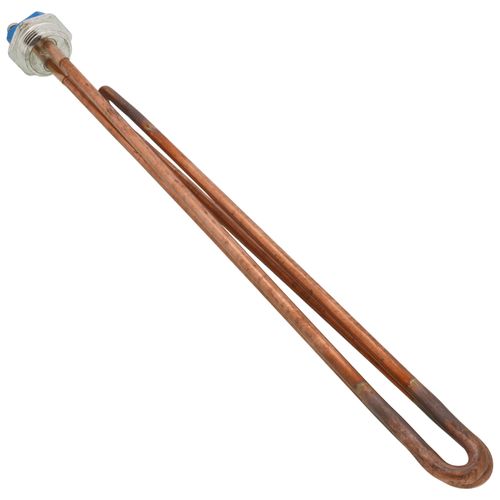

1" 6000W Copper Resistored Screw-in Element MWD (208V)SP10872QL 1" 6000W Copper Resistored Screw-in Element MWD (208V)
Free Shipping On orders over $99
Need replacement parts for this unit?
- Watt Density Classification: MWD
- Input Voltage (V): 208
- Wattage at 208V (W): 6000
- Watt Density at 208V (W/sq. in.): 134
- Cold Resistance (ohms): 7.20
- Outer Sheath Material: Copper
- Resistored: Yes
- Configuration: Foldback
- Element Diameter (in.): .260
- Element Length - Flange to Tip (in.): 15.13
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2
