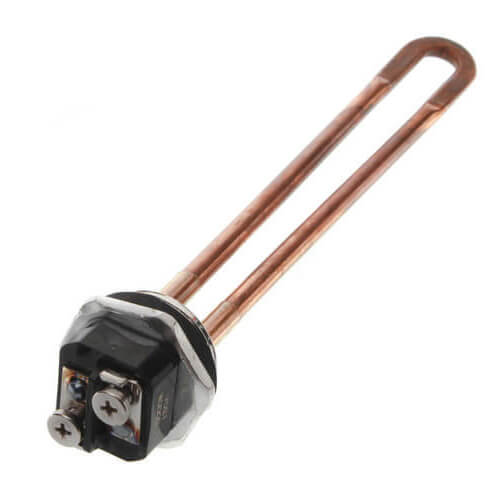

1" 2000W Copper Resistored Screw-in Element HWD (120V), SP10874GH
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$20.87 each
In Stock
Get 4 Fri, Jul 3
MANUALS (2)
This item replaces: AP10874GH-2, AP10874GH-3
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
2000 Watts
120v
Copper
Description
–
1" 2000W Copper Resistored Screw-in Element HWD (120V)
Specifications:
Specifications:
- Watt Density Classification: HWD
- Input Voltage (V): 120
- Wattage at 120V (W): 2000
- Watt Density at 120V (W/sq. in. ): 170
- Cold Resistance (ohms): 7.20
- Outer Sheath Material: Copper
- Resistored: Yes
- Configuration: Straight
- Element Diameter (in.): .260
- Element Length - Flange to Tip (in.): 7.65
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-9/32
- Nominal Thread Size - (in.): 1
- Threads per Inch: 11-1/2
- Thread Type Series Designation: NPSM
- Hex Head Size - Across Flats (in.): 1-1/2
Specs
–
| Type: | Element |
|---|---|
| Wattage: | 2000 |
| Voltage: | 120v |
| Material: | Copper |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.67 out of 6 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I approve of the purchase & use of this product; H2O element
Only been a week thus far but, so far, so good! Was not too difficult to replace with some mechanical experience and a few tools but, need the correct size (1 & one half inch) 12-point socket or wrench, though. Also, consider your method of draining the water tank in preparation for replacement of this element. Mine did not come with the ring-shaped gasket/seal which IS NEEDED to water-tight seal the base of the element when properly tightened in place.
SoberUtuber
Pickens County, GA
1 years ago
Verified Buyer
Was this review helpful to you?
Part works fine but...
The HW heater element works fine, but when I received it there was no rubber seal so I had to find one.
John
Dallas, TX
3 years ago
Verified Buyer
Was this review helpful to you?
Heating Element
Works great. Finally have hot water again.
Thumpersl8
Florida
3 years ago
Verified Buyer
Was this review helpful to you?
Great service, perfect product
I distill lavender and the replacement element is perfect. Fast service allowed me to finish harvest within delay
K
Washington State
5 years ago
Verified Buyer
Was this review helpful to you?
Works great
Works great
Terry
Ohio
7 years ago
Verified Buyer
Was this review helpful to you?
I got the product and ordered a second one to have on hand
The catalog online was very clear and easy to read, the service was great... I receive the order in just a couple of days, and I have nothing but praise for this company!
Glenda
Lebanon, IN
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Is this the one for a Rheem electric Water Heater Model# 81VP20S 20 gal 120V 2000W
Asked by Rich 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe SP10868LH Rheem Water Heater Part is for the 81VP20S, not the SP10874GH.
