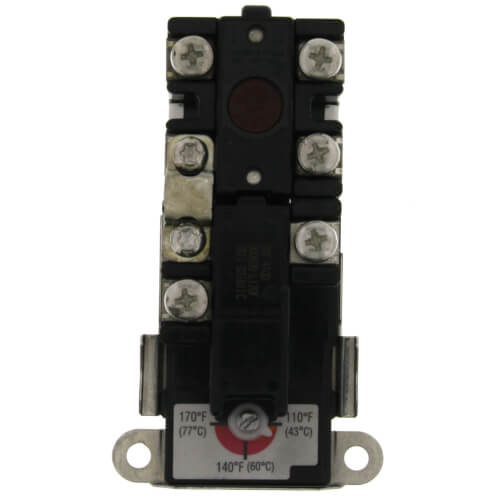

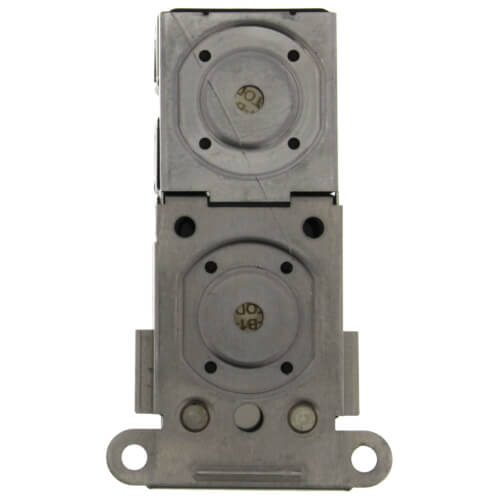

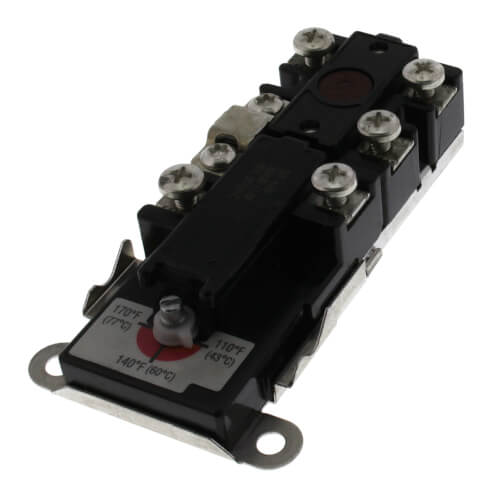

2-Pole High Limit - Normally Open & Normally Closed Thermostat Contacts (TOD)

This design is the most popular Upper Thermostat in residential electric water heaters. These heaters often have a "Non-Simultaneous" design, which means only one element is on at any given time.
  • Manufacturer: TOD
  • Manufacturer Series: 59T/66T
  • High Limit Control: Manual Reset
  • High Limit Setting (F): 190
  • High Limit Tolerance (F): +/- 5
  • High Limit Contact Configuration: DPST
  • Thermostat Adjustment Range (F): 110 to 170
  • Thermostat Tolerance (F): +/- 5
  • Thermostat Differential (F): 17 to 27
  • Thermostat Contact Configuration: SPDT
Hide Description
Manuals (1)
Specs
Product Type:

Thermostat

×
