UV12902 has been discontinued
Discontinued March 15, 2021
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: AP12902
Product Highlights
–
4500 Watts
240v
Copper
Description
–

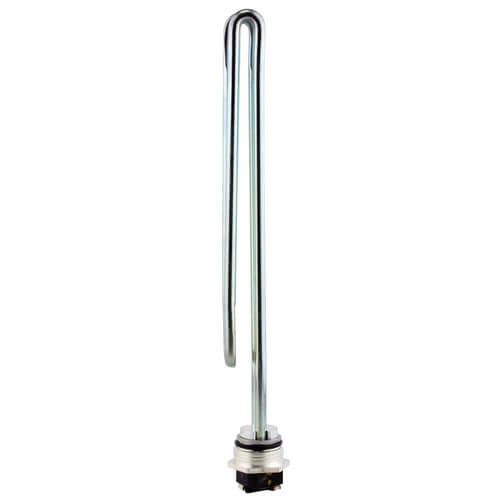

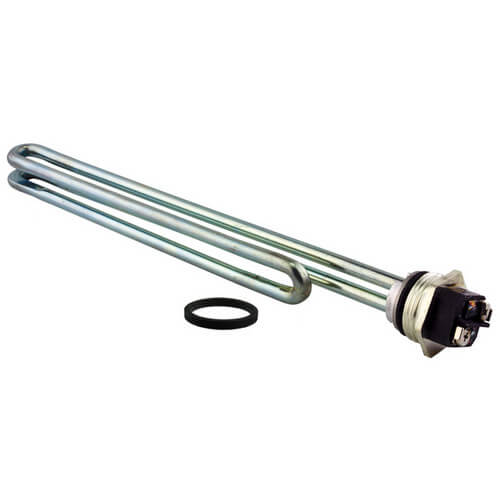

1" 4500W Copper Non-Resistored Screw-in Element MWD (240V)
- Watt Density Classification: MWD
- Input Voltage (V): 240
- Wattage at 240V (W): 4500
- Watt Density at 240V (W/sq. in. ): 112
- Outer Sheath Material: Copper (with Plating)
- Resistored: No
- Configuration: Foldback
- Element Diameter (in.): .316
- Element Length - Flange to Tip (in.): 11.83
- Mounting Type: Threaded
- Actual Thread Size - Outside Diameter (in.): 1-3/8
- Nominal Thread Size - (in.): 1-3/8
- Threads per Inch: 10
- Thread Type Series Designation: UNS
- Hex Head Size - Across Flats (in.): 1-1/2
Specs
–
| Type: | Element |
|---|---|
| Wattage: | 4500 |
| Voltage: | 240v |
| Material: | Copper |
