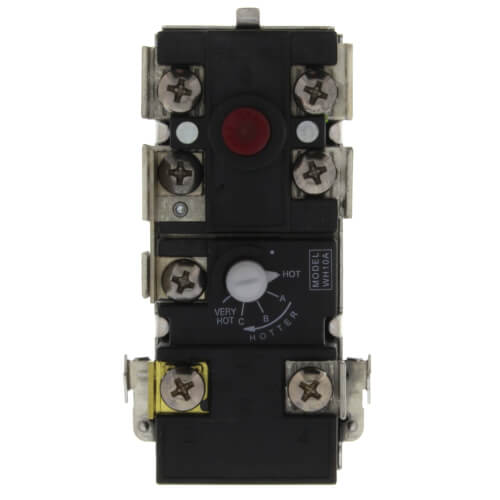

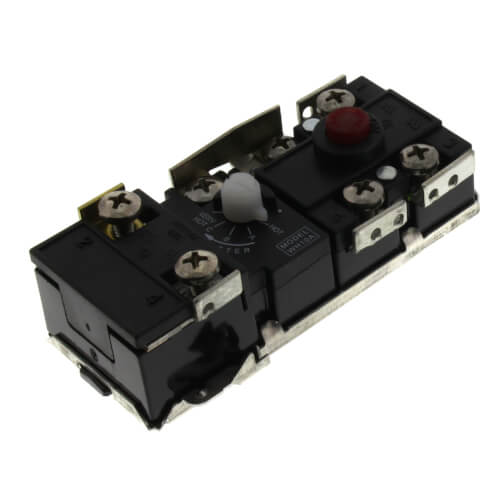

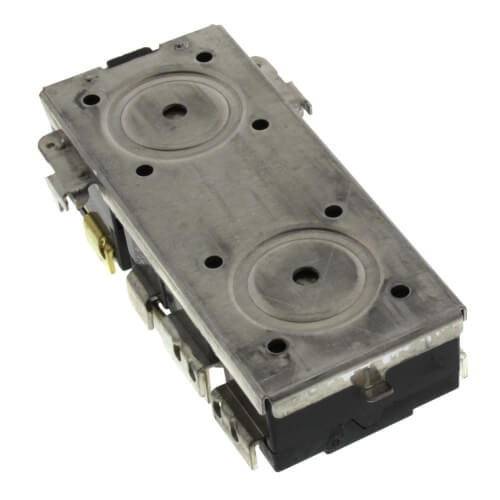

Main product image of 2-Pole High Limit - Normally Open & Normally Closed Thermostat Contacts (APCOM)

Hover image to zoom

2-Pole High Limit - Normally Open & Normally Closed Thermostat Contacts (APCOM)

Name: 2-Pole High Limit - Normally Open & Normally Closed Thermostat Contacts (APCOM)
Brand: Rheem
SKU: UV13359
Price: 18.04 USD
Availability: OutOfStock

Brand:

Rheem

SKU:

UV13359

Rating:

(0)

Q&A:

(0)

2-Pole High Limit - Normally Open & Normally Closed Thermostat Contacts (APCOM)

Hover image to zoom

UV13359 has been discontinued

Discontinued July 1, 2022

This product was discontinued by the manufacturer.

MANUALS (1)

Brochure

Description

–

2-Pole High Limit - Normally Open & Normally Closed Thermostat Contacts (TOD)

This design is the most popular Upper Thermostat in residential electric water heaters. These heaters often have a "Non-Simultaneous" design, which means only one element is on at any given time.

Manufacturer: APCOM
Manufacturer Series: WH10A
High Limit Control: Manual Reset
High Limit Setting (F): 180
High Limit Tolerance (F): +/- 5
High Limit Contact Configuration: DPST
Thermostat Adjustment Range (F): 110 to 160
Thermostat Tolerance (F): +/- 5
Thermostat Differential (F): 17 to 27
Thermostat Contact Configuration: SPDT
