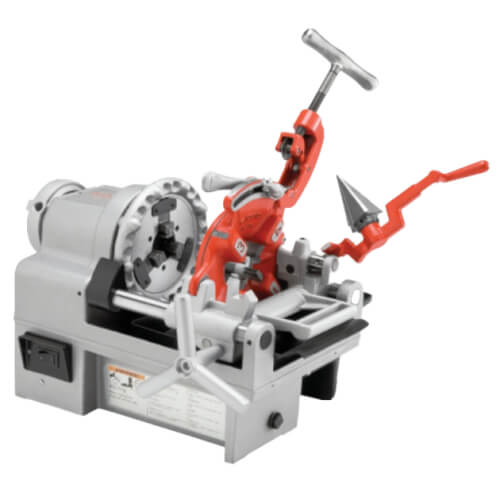

Model 1215 Threading Machine, 1/2" - 1-1/2" Pipe Capacity (115V)

The RIDGID Model 1215 Threading Machine is an electric motor-driven machine that centers and chucks the pipe and rotates it while cutting, reaming and threading operations are performed. Threading dies are mounted in self-opening, quick-opening or semi-automatic die heads. An integral oiling system is provided to flood the work with thread cutting oil during the threading operations.

Product Features:

• Compact, lightweight design
• One-piece aluminum housing
• Two easy-to-use carrying handles
• Integral foot switch hanger
• Powerful motor and transmission
• Through die head oiling
• Adjustable oil flow control
• Approved by CSA to CSA and UL standards (115V only)

Product Specifications:

• Pipe Capacity: 1/4" - 1 1/2" (6mm-37mm)
• Bolt Capacity: 5/16" - 1" (6mm-25mm)
• Motor Control: On/off heavy-duty switch and integral foot switch
• Front Chuck: Hammer type with replaceable rocker action jaw inserts
• Rear Centering Device: Cam action
• Oiling: Through die head adjustable
• Pump: Self-priming constant flow, gerotor type
