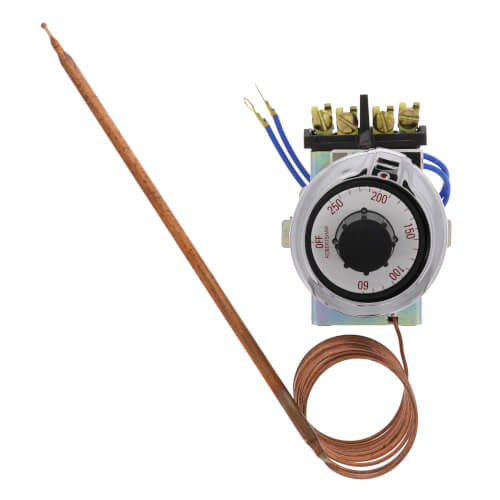

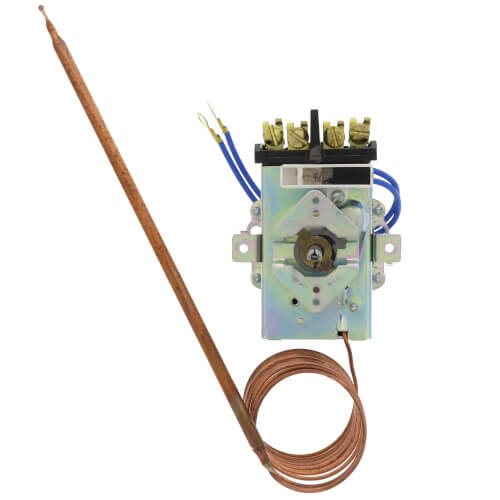

Commercial Electric Thermostat Kit w/ 60" Capillary

The Robertshaw 5000 Series Electric Thermostat is a heavy-duty thermostat designed for use in harsh applications where precise temperature control is required. The control uses a double pole single throw (DPST) snap-action mechanism with a positive OFF switch. It is recommended for use on applications that require double pole operation and accurate temperature control.

Features and Benefits:

• DPST with positive OFF
• Mechanical snap-action is instantaneous, positive and non-fatiguing
• Reacts to exceedingly small movements of the diaphragms for very close temperature differential
• Diaphragm assembly features two stainless steel diaphragms electrically welded together
• Maximum sensitivity without over-stressing the metal
• Supplied with terminals mounted in four different positions
• Bulb and capillary available in copper, nickel plated copper, or stainless steel

Attributes

• Series Application: 5000 Series (D1 & D18) Commercial Electric Thermostats
• Electrical Rating: 120, 277V AC @ 30 Amps, 480V AC @ 10 Amps, 277V AC @ 250VA, 125V AC @ 125VA
• Capillary Length: 60"
• Bulb Size: 1/4" x 9-1/2"
• Dial Temperature: 60°F to 250°F
• Dial Type: 4-Way
• Mechanical Differential: 6°F
• Mounting Type: #1
