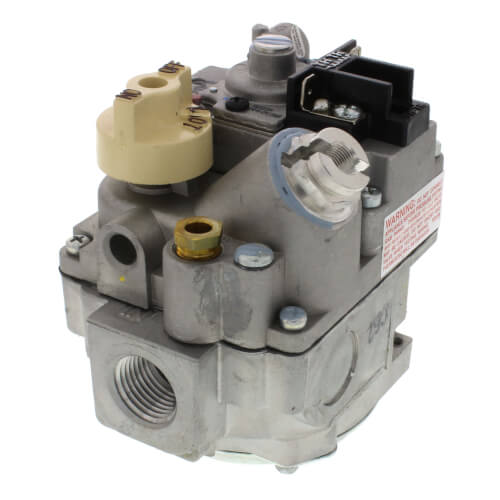

1/2" X 3/4" Combo Gas Valve (240,000)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$158.59 each
In Stock
Get 5 Wed, Jun 17
Order by today, receive Wednesday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane, Natural Gas
1/2"
3/4"
240000 BTU Capacity
Standing Pilot
Description
–
Note: The 700 Series 24 Volt Uni-Kits have a pressure regulator installed that is set
for natural gas (3.5" W.C.) To convert to L.P. gas, a regulator cover plate is
included. Simply remove pressure regulator and install the regulator cover plate.
For reliability, performance, flexibility and ease of installation and service in one compact control, Robertshaw's 24 volt combination gas valves are the answer. These valves feature a manual valve (gas cock), an automatic pilot safety valve, inlet/outlet screens, pilot outlet, pilot gas filter and pilot adjustment key. Regulated and nonregulated models are available (see ordering chart). Models that have a safety magnet have a "notched or slotted" magnet for applications requiring the use of an ECO (Energy Cut-Off) switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult ordering charts for individual control specifications.
Features
For reliability, performance, flexibility and ease of installation and service in one compact control, Robertshaw's 24 volt combination gas valves are the answer. These valves feature a manual valve (gas cock), an automatic pilot safety valve, inlet/outlet screens, pilot outlet, pilot gas filter and pilot adjustment key. Regulated and nonregulated models are available (see ordering chart). Models that have a safety magnet have a "notched or slotted" magnet for applications requiring the use of an ECO (Energy Cut-Off) switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult ordering charts for individual control specifications.
Features
- Electrical rating: 12 VDC 0.18 amps
24 VAC 0.2 amps 50/60 Hz - Pressure regulator: factory set at 3.5" W.C.
- Pilot outlet: 1/4" tubing
- Gas cock dial marking: off-pilot-on
- Terminal type: combination screw/spade
- Ambient temperature : 40° to 175°F
- Maximum inlet pressure: 14" W.C. (1/2 PSI)
Specs
–
| Fuel Type: | Propane Natural Gas |
|---|---|
| Inlet Size: | 1/2" |
| Outlet Size: | 3/4" |
| Side With Plugs: | Straight Thru |
| Pressure Reg Setting: | UNI-KIT |
| Capacity: | 240000 BTU |
| Capacity (BTU): | 240000 |
| Ignition Type: | Standing Pilot |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
Replacement Knob for 7000 Series
SKU: 1751-012
Robertshaw
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.67 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
i would buy from again
i order a gas vale on line at night, then i called the next day before it was ship to make sure i order the right one. i did not order the right one, so they fixed the order before it was ship. and i have heat now.thank you for all your help.
john fix it
illinois
8 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Perfect Fit
This is a replacement on an existing garage heater. I had initially replaced the thermocouple which did not solve the problem. After repalcing the gas valve control, everything worked.A note about piping: If you have existing copper piping that carries natural gas or propane you should replace it. The reason this unit failed is the flaking of the copper pipe due to chemical reaction from gas.
mik42
springfield,USA
14 years ago
Verified Buyer
Was this review helpful to you?
Fired Right Up
Good Quality
Waynes World
Stillwater mn
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: CAN THIS PRODUCT BE CONVERTED TO LP WITH A BLOCKER PLATE?
Asked by office 10 years ago
Add your answer
Verified Reply- To convert to L.P. gas, a regulator cover plate is included. Simply remove pressure regulator and install the regulator cover plate.
