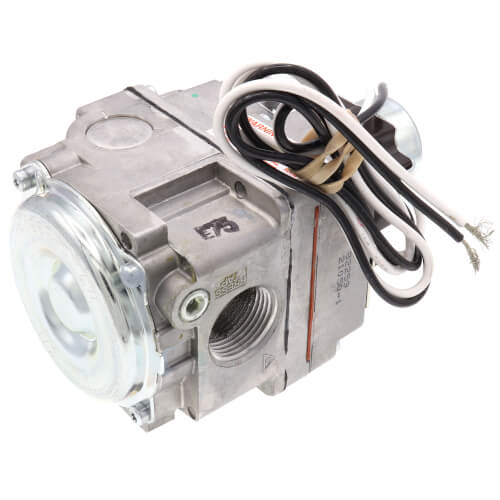

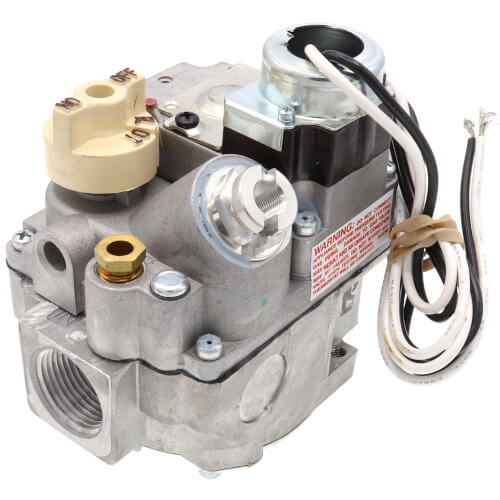

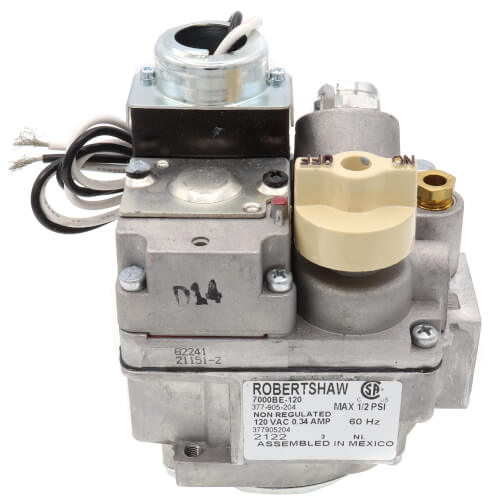

120v 3/4" X 3/4" Standing Pilot Gas Valve, no regulator
Hover image to zoom

120v 3/4" X 3/4" Standing Pilot Gas Valve, no regulator

SKU:
700-453
Rating:
(0)
Q&A:
(0)
120v 3/4" X 3/4" Standing Pilot Gas Valve, no regulator
Hover image to zoom
$224.33 each
In Stock
In Stock
Get 14 Wed, Mar 6
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Fuel Type icon
Natural Gas
Inlet Size icon
3/4"
Outlet Size icon
3/4"
Capacity (BTU) icon
300000 BTU Capacity
Voltage icon
120v

Description

For reliability, performance, flexibility and ease of installation and service in one compact control, Robertshaw's 120 volt combination gas valves are the answer. These valves feature a manual valve (gas cock), an automatic pilot safety valve, inlet/outlet screens, pilot outlet, pilot gas filter and pilot adjustment key. Regulated and nonregulated models are available (see ordering chart). Models that have a safety magnet have a "notched or slotted" magnet for applications requiring the use of an ECO (Energy Cut-Off) switch. The automatic pilot safety valve is separate from the gas cock and provides gas shutoff in case of pilot outage. VALVES CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN. Consult ordering charts for individual control specifications.

The 700 Series 120 Volt Uni-Kits have a pressure regulator installed that is set for natural gas (3.5" W.C.) To convert to L.P. gas, a regulator cover plate is included. Simply remove pressure regulator and install the regulator cover plate.

Features
  • Electrical rating: 120 VAC / 240 VAC
  • Pressure regulator: factory set at 3.5" W.C.
  • Pilot outlet: 1/4" tubing
  • Gas cock dial marking: off-pilot-on
  • Terminal type: combination screw/spade
  • Ambient temperature : -40° to 175°F
  • Maximum inlet pressure: 14" W.C. (1/2 PSI)

Specs

Fuel Type:

Natural Gas

Inlet Size:

3/4"

Outlet Size:

3/4"

Pressure Reg Setting:

3.5" W.C. NAT. GAS

Voltage:

120v

Capacity (BTU):

300000
