Temperature and Humidity Controller, w/ Single Stages, Heat/Cool, SPST, 2 Output Sockets and 2 Submersible Probes, 100-240v

Overview:

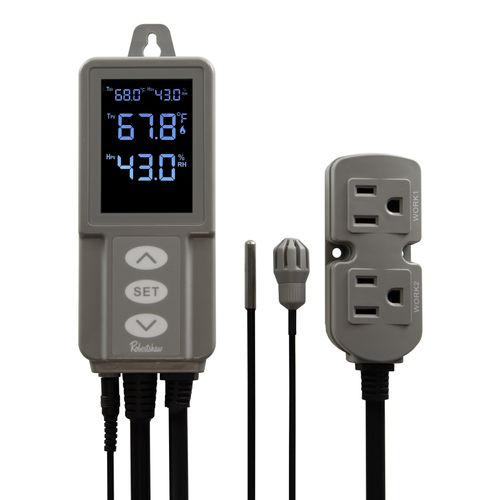

The Robertshaw RTC-500 is a digital controller that has two output sockets to control temperature (work1) and humidity (work2). The RTC-500 controller comes with two probes, a dual temperature and humidity sensor and a fully submersible temperature sensor. The large, backlit LCD screen displays temperature, humidity, and other parameters. The three-button design allows for quick programming of parameter settings, including alarm limit calibration, protection time, unit switching, and more.

Features & Benefits:

• Applications include: Brewing, Incubation/Breeding, Greenhouses, Terrariums, Aquariums, Reptile Habitats and more
• Control temperature and humidity with a single controller
• Large, easy-to-read, backlit LCD screen
• 2 probes included:
  • Fully submersible temperature sensor
  • Dual temperature and humidity sensor
• Programmable in Fahrenheit or Celsius
• High and low temperature/humidity limit alarm
• Sensor fault alarm

Specifications:

• Working voltage: 100-240VAC, 50/60Hz
• Temperature measurement range: 23 to 158F / -5 to 70C
• Temperature control range: 23 to 158F / -5 to 70C
• Temperature measurement accuracy: 1F / 0.5C
• Temperature resolution: 0.1F / 0.1C
• Humidity measurement range: 5 to 99%RH
• Humidity control range: 5 to 99%RH
• Humidity measurement accuracy: 5%RH
• Output power: 2200W (resistive) in total / 200W (inductive) per channel @220VAC,
• 1100W (resistive) in total / 100W (inductive) per channel @110VAC
• Total power consumption: <5W
• Working environment temperature: 32 to 140F / 0 to 60C
• Storage temperature: 14 to 140F / -10 to 90C
• Length of power cable: 5 ft
• Length of output power cable: 1 ft
• Length of sensor cable: 6.5 ft (including probe length)
• Enclosure size: 153mm x 60mm x 29mm
