Description

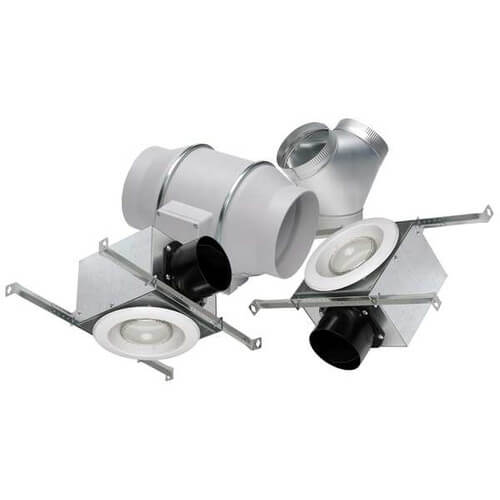

Duct Fan Exhaust Kit, 2 LED Light Grilles, Fits Duct Dia. (In.) 6, CFM @ 0.000-In. SP 293 / 218, CFM @ 0.100-In. SP 281 / 202, Max. Inlet Temp. (Deg. F) 104, 120V, 60 Hz, 1 Phase, Max. Amps .542, Max. Wattage 65, Motor RPM 2289, Housing Dia. (In.) 7-7/8, Length (In.) 7-7/8, Width (In.) 7-7/8, Height (In.) 8-3/8, Includes Mounting Bracket And 2 LED Light Grilles.

Includes:
  • 1 TD150 exhaust fan
  • 2 Vent Lights with LED Bulb (VLED-100)
  • 1 Y-fitting (SY44-6)
  • Integral mounting bracket

Features:
  • Hz: 60
  • Voltage: 120V
  • Bearing Type: Ball
  • Mounting Position: Horizontal or Vertical
  • Standards: UL, HVI, AMCA
  • Phase: 1
  • Max. Inlet Temp.: 104 Degrees F
  • Motor Enclosure: Totally Enclosed
  • Housing Material: Thermoplastic
  • Housing Finish: Off White
  • Item: Duct Fan Exhaust Kit
  • Speed Control: Yes
  • Number of Speeds: 1
  • Includes: Mounting Bracket and (2) LED Light Grilles
  • CFM @ 0.000-In. SP: 293/218
  • CFM @ 0.100-In. SP: 281/202
  • CFM @ 0.200-In. SP: 261/171
  • CFM @ 0.250-In. SP: 250/163
  • CFM @ 0.375-In. SP: 227/128
  • CFM @ 0.400-In. SP: 222/119
  • CFM @ 0.450-In. SP: 215/112
  • CFM @ 0.500-In. SP: 206/105
  • CFM @ 0.600-In. SP: 165/70
  • CFM @ 0.750-In. SP: 131/24
  • CFM @ 0.800-In. SP: 110
  • Max. Amps: 0.542
  • Max. Wattage: 65
  • Motor RPM: 2289
  • Inlet and Outlet Dia.: 6"
  • Fits Duct Dia.: 6"
  • Flange Width: 1-1/4"
  • Length: 7-7/8"
  • Housing Dia.: 7-7/8"
  • Mfr Number: KIT-TD150L

**Image may not be exact representation of product.**
Read more
Manuals (2)
Specs
Duct Size:
6"
Voltage:
120v
Air Flow Capacity (CFM):
293
Bearings:
Ball
Amperage:
0.542
Housing Material:
Thermoplastic
Warranty:
7-Year
×
