Description

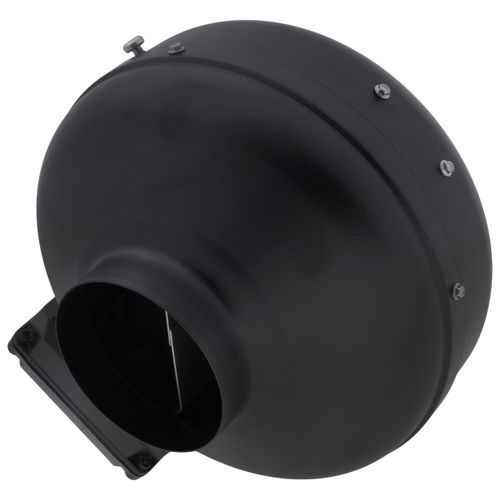

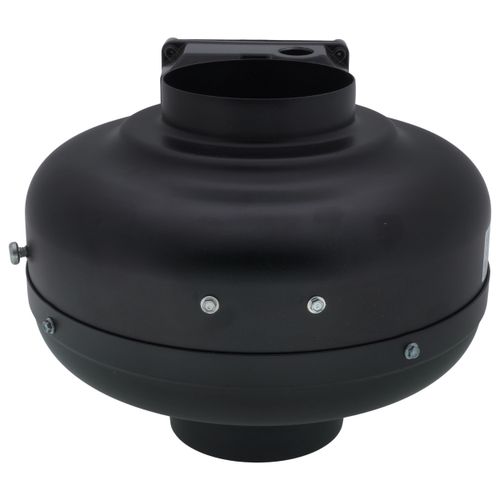

Duct Fan, Inline Centrifugal, Fits Duct Dia. (In.) 4, CFM @ 0.000-In. SP 153, CFM @ 0.100-In. SP 197, Max. Inlet Temp. (Deg. F) 140, 115V, 60 Hz, 1 Phase, Max. Wattage 85, Motor RPM 2880

Model Details:
  • Exhaust air up to 942 CFM with static pressure capabilities to 1.5” w.g.
  • Galvanized steel casing with black backed enamel coating
  • Pre-wired junction box
  • Ideal for applications where space is limited
  • Non-overloading backward inclined wheel for efficiency at higher static pressures
  • AMCA Seal for Air Performance
  • cULus Listed

Features:
  • Hz: 60
  • Bearing Type: Ball
  • Mounting Position: Horizontal or Vertical
  • Phase: 1
  • Motor Enclosure: Totally Enclosed

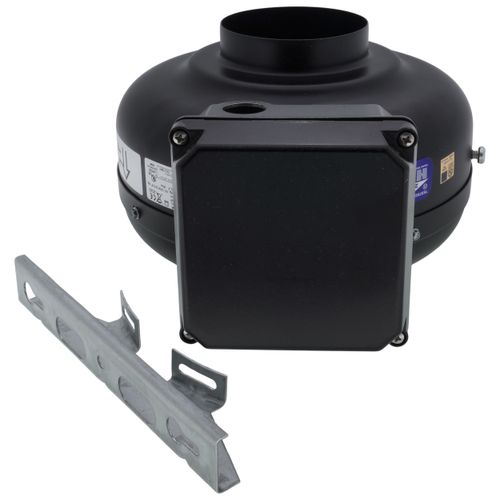

  • Includes: Mounting Bracket
  • Inlet and Outlet Dia.: 4"
  • Number of Speeds: 1
  • Fits Duct Dia.: 4"
  • Motor RPM: 2880
  • Item: Inline Centrifugal Duct Fan
  • CFM @ 0.375-In. SP: 153
  • Voltage: 115V
  • Speed Control: Yes
  • Max. Wattage: 85
  • Housing Material: Galvanized Metal
  • Max. Inlet Temp.: 140 Degrees F
  • Housing Finish: Black Epoxy Coating

**Image may not be exact representation of product.**
Read more
Manuals (2)
Specs
Duct Size:
4"
Voltage:
115v
RPM:
2880
Air Flow Capacity (CFM):
153
Max. Watts:
85
Bearings:
Ball
Housing Material:
Galvanized Metal
Warranty:
5 Years
×
