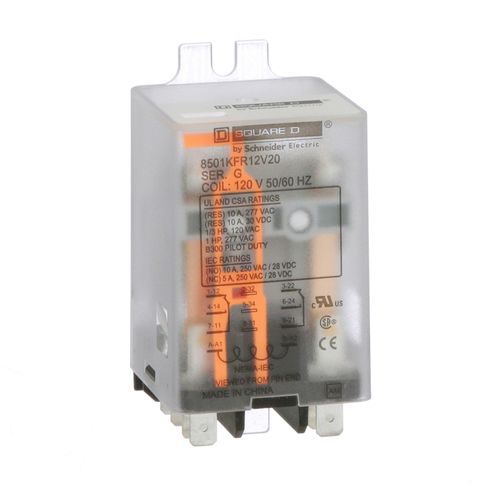

Plug-In Relay, Type KF, Flange-Mounted, DPDT, 2NO/2NC, 10A, 120 VAC Coil, 8501KFR12V20

8501KF universal relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be flange mounted into a panel. This flange mounted relay has DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KF relays are UL component recognized and CSA certified.
