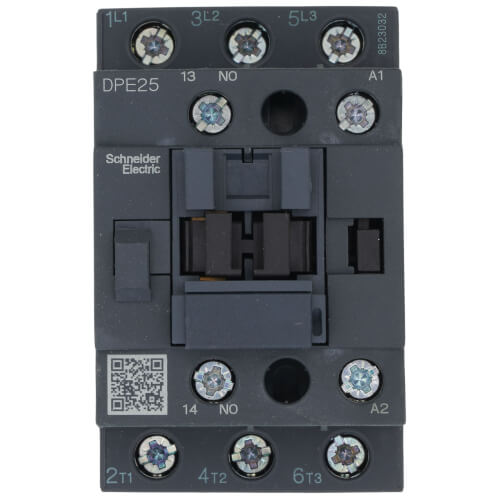

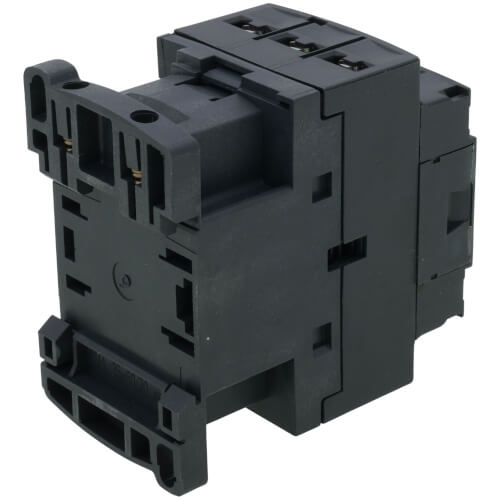

3 Pole Easy TeSys DPE IEC Contactor (15HP, 32A, 120 VAC, 480V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$64.13 each
In Stock
Get 1 Wed, Jul 8
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 HP
32 Amps
120 VAC, 480V
Normally Open
Description
–
Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15 HP@480V). It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Product Features
Product Features
- DPE contactors can offer quick simple setup, while maintaining a compact size
- Simple to select and install at optimized budget
- Reduced installation time
- Robust performance for common applications
- Flexibility to add motor disconnects to help met NEC requirements
- Contactor Application: Resistive load, Motor control
- Poles Description: 3P
- Pole Contact Composition: 3 NO
- Control Circuit Type: AC 50/60 Hz
- Control Circuit Voltage: 120 V AC 50/60 Hz
- Operating Voltage: 690 VAC
- Auxiliary Contact Composition: 1 NO
- Mounting Support: Rail, Plate
Specs
–
| Product Type: | Contactor |
|---|---|
| Poles: | 3 |
| Horse Power: | 15 |
| Amperage: | 32 |
| Voltage: | 120 VAC 480V |
| Position: | Normally Open |
