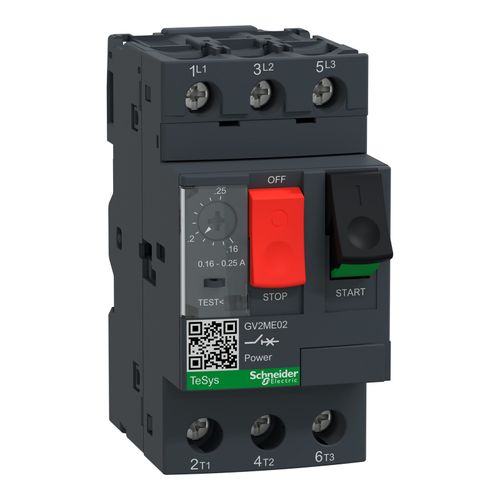

0.25 Amp 690 VAC 50/60 Hz 3-Pole Bolt-On Clip Thermal Magnetic Trip Motor Circuit Breaker, 78mm Deep x 89mm High x 45mm Wide, GV2ME02

TeSys GV motor circuit breaker, 3 poles (3P), 0.25A/690V, for 3-phase motor applications 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.16-0.25A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
