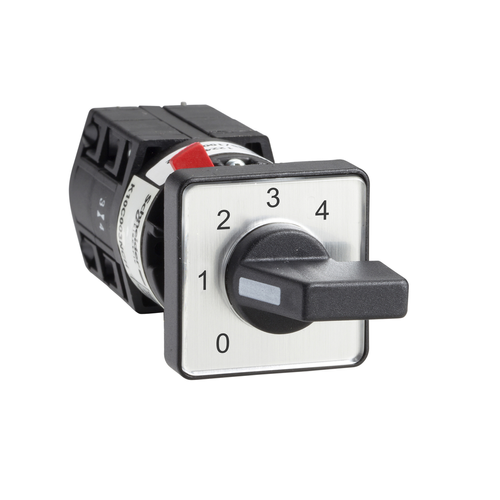

Harmony K Cam Stepping Switch, 16mm/22mm, 1 Pole, 4 Steps + Position 0 (10A, 30 Deg)

This Harmony K10 cam stepping switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 30 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

• Product Or Component Type: complete cam switch
• Presentation Of Legend: with metallic, 0 - 1 - 2 - 3 - 4 black
• Poles Description: 1P
• Warranty: 18 months
• Off Position: with Off position
• Mechanical Durability: 1000000 cycles
• Cad Overall Width: 30 mm
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Switching Angle: 30 °
• [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60947-1
• [Ie] Rated Operational Current Dc: 10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
• Electrical Shock Protection Class: class II IEC 60536
• Protective Treatment: TC
• Rated Operational Power In W: 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
• Electrical Durability: 100000000 cycles
• Number Of Steps: 4
• Cad Overall Height: 30 mm
• Cam Switch Function: stepping switch
• Product Mounting: front mounting
• Rotary Handle Padlocking: without
• Fixing Mode: 16 or 22 mm hole
• Cam Switch Head Type: with front plate 30 x 30 mm
• Ambient Air Temperature For Operation: -20-55 °C
• Rated Power In Hp: 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 220/240 V AC, 1 phase
• Switching Positions: right: 270° - 300° - 330° - 0° - 30°
• Mercury Free: Yes
• Contact Operation: slow-break
• Reach Free Of Svhc: Yes
• Cad Overall Depth: 88 mm
• Type Of Operator: Black handle
• Toxic Heavy Metal Free: Yes
• Short-Circuit Protection: 10 A cartridge fuse gG
• Range Of Product: Harmony K
• Electrical Connection: captive screw clamp terminals 2 x 1.5 mm squared
• Ambient Air Temperature For Storage: -40-70 °C
• Standards: CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
• Return: without
• China Rohs Regulation: X
• [Ui] Rated Insulation Voltage: 440 V 3)IEC 60947-1
• Component Name: K10
• Net Weight: 0.045 kg
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Ip Degree Of Protection: contact block: IP20 || operating head: IP65 conforming to IEC 60529
• [Ith] Conventional Free Air Thermal Current: 0.416666666666667
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• [Ie] Rated Operational Current Ac: 10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15
• Rohs Exemption Information: Yes
• Product Certifications: cULus
