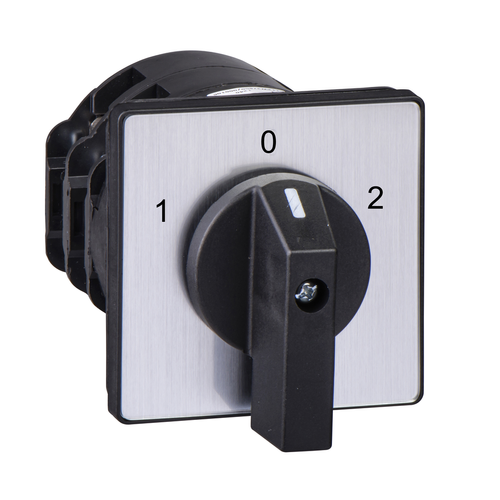

Harmony K Cam Changeover Switch, 3 Poles, 2 Steps + Position 0 (115A, 60 Deg)

This metal head cam switch is designed to meet most industrial and process control application thanks to a compact size and has several selection functions It has a 60 or 300 degree between its switching positions It works at a rated conventional free air thermal current of 115 A

• Off Position: with Off position
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Standards: IEC 60947-3
• Protective Treatment: TC
• Product Or Component Type: complete cam switch
• Cad Overall Width: 88 mm
• Ambient Air Temperature For Storage: -40-70 °C
• Switching Positions: right: 0° - 60° || left: 0° - 300°
• Cam Switch Head Type: with front plate 88 x 88 mm
• Short-Circuit Current: 15000 A
• Cam Switch Function: changeover switch
• Electrical Connection: captive screw clamp terminals flexible 1 x 25 mm squared || captive screw clamp terminals solid 1 x 35 mm squared
• China Rohs Regulation: X
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Fixing Mode: 4 holes
• Warranty: 18 months
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Overvoltage Category: class II IEC 60536 || class II NF C 20-030
• Positive Opening: with
• Rotary Handle Padlocking: without
• Contact Operation: slow-break
• Type Of Operator: Black handle
• Rohs Exemption Information: Yes
• Cad Overall Height: 88 mm
• Cad Overall Depth: 154 mm
• Return: without
• [Ie] Rated Operational Current Ac: 100 A AC-21A IEC 60947-3
• Switching Capacity In Ma: 100000 mA DC 140 V 3 resistive 1 ms) || 100000 mA DC 24 V 1 inductive 50 ms) || 100000 mA DC 48 V 1 resistive 1 ms) || 100000 mA DC 48 V 2 inductive 50 ms) || 100000 mA DC 70 V 3 inductive 50 ms) || 100000 mA DC 95 V 2 resistive 1 ms) || 115000 mA DC 24 V 1 resistive 1 ms) || 115000 mA DC 48 V 2 resistive 1 ms) || 115000 mA DC 70 V 3 resistive 1 ms) || 33000 mA DC 30 V 1 inductive 50 ms) || 33000 mA DC 60 V 2 inductive 50 ms) || 33000 mA DC 90 V 3 inductive 50 ms)
• Presentation Of Legend: with metallic, 1 - 0 - 2 black
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Short-Circuit Protection: 125 A cartridge fuse gG
• [Uimp] Rated Impulse Withstand Voltage: 6 kV EN 947-1 || 6 kV IEC 947-1
• Ip Degree Of Protection: IP40 conforming to IEC 60529
• Net Weight: 0.645 kg
• Ambient Air Temperature For Operation: -25-55 °C
• Mechanical Durability: 300000 cycles
• Tightening Torque: 2.5 N.m
• Tightening Torque: 2.5 N.m
• [Ui] Rated Insulation Voltage: 690 V 3)IEC 60947-1
• Toxic Heavy Metal Free: Yes
• Mercury Free: Yes
• Rated Operational Power In W: 13000 W AC-3, 380/440 V 1 phase IEC 60947-3 || 15000 W AC-23A, 220/240 V 1 phase IEC 60947-3 || 15000 W AC-3, 220/240 V 3 phase IEC 60947-3 || 22000 W AC-23A, 380/440 V 1 phase IEC 60947-3 || 30000 W AC-23A, 220/240 V 3 phase IEC 60947-3 || 30000 W AC-3, 380/440 V 3 phase IEC 60947-3 || 30000 W AC-3, 660/690 V 3 phase IEC 60947-3 || 3700 W AC-3, 110 V 1 phase IEC 60947-3 || 45000 W AC-23A, 380/440 V 3 phase IEC 60947-3 || 5500 W AC-23A, 110 V 1 phase IEC 60947-3 || 65000 W AC-23A, 660/690 V 3 phase IEC 60947-3 || 7500 W AC-3, 220/240 V 1 phase IEC 60947-3
• [Ith] Conventional Free Air Thermal Current: 115 A
• Range Of Product: Harmony K
• Poles Description: 3P
• Reach Free Of Svhc: Yes
• Product Certifications: cULus 120 V 5 hp 1 phase || cULus 240 V 10 hp 1 phase || cULus 240 V 20 hp 3 phase || cULus 480 V 30 hp 3 phase
• Mounting Location: front
• Component Name: K115
• Switching Angle: 60 °
