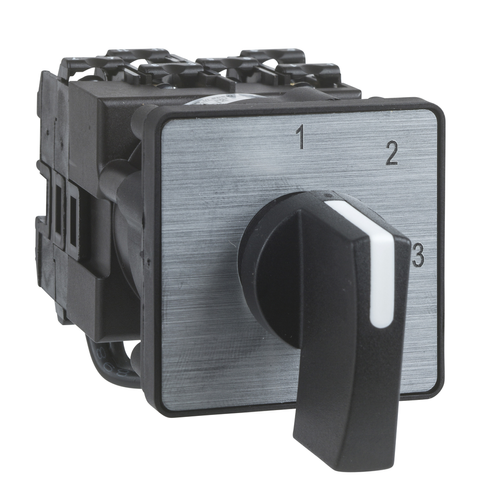

Harmony K Multifixing Cam Switch, 1 Pole, 3 Steps + Position 0 (12 A, 45 Deg)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$85.97 each
Out of Stock
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
18 Months Warranty
12 Amps
Description
–
- Electrical Durability: 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
- Short-Circuit Current: 10000 A
- Product Or Component Type: complete cam switch
- [Ithe] Conventional Enclosed Thermal Current: 0.416666666666667
- Rated Operational Power In W: 10500 W AC-21, 500...660 V 3 phase IEC 60947-3 || 2200 W AC-23A, 690 V 3 phase IEC 60947-3 || 4800 W AC-21, 230 V 3 phase IEC 60947-3 || 600 W AC-3, 230 V 1 phase IEC 60947-3 || 8300 W AC-21, 400 V 3 phase IEC 60947-3 || 1100 W AC-3, 230 V 3 phase IEC 60947-3 || 1500 W AC-23A, 230 V 3 phase IEC 60947-3 || 1500 W AC-3, 400 V 1 phase IEC 60947-3 || 1500 W AC-3, 400 V 3 phase IEC 60947-3 || 1500 W AC-3, 500 V 3 phase IEC 60947-3 || 1500 W AC-3, 690 V 3 phase IEC 60947-3 || 2200 W AC-23A, 400 V 3 phase IEC 60947-3 || 2200 W AC-23A, 500 V 3 phase IEC 60947-3
- [Ui] Rated Insulation Voltage: 690 V 3)IEC 60947-1
- Shock Resistance: 30 gn IEC 68-2-27
- Off Position: with Off position
- Cad Overall Depth: 77 mm
- Cad Overall Width: 45 mm
- Reach Free Of Svhc: Yes
- Return: spring return from 45° to 0° || spring return from 315° to 0°
- Contact Operation: slow-break
- Range Of Product: Harmony K
- Ambient Air Temperature For Operation: -25-55 °C
- [Uimp] Rated Impulse Withstand Voltage: 4 kV in isolating function || 6 kV IEC 60947-1
- Switching Angle: 45 °
- Maximum Operating Rate: 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
- Net Weight: 0.115 kg
- Cam Switch Function: reversing switch
- Product Mounting: front mounting
- Short-Circuit Protection: 16 A cartridge fuse gG
- Circularity Profile: N/A
- California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status: Green Premium product
- [Ie] Rated Operational Current Ac: 1.8 A 690 V AC-3 3 phase IEC 60947-3 || 2 A 400 V AC-15 IEC 60947-5-1 || 3 A 230 V AC-15 IEC 60947-5-1 || 2.8 A 500 V AC-3 3 phase IEC 60947-3 || 2.8 A 690 V AC-23A 3 phase IEC 60947-3 || 3.3 A 400 V AC-3 3 phase IEC 60947-3 || 3.8 A 500 V AC-23A 3 phase IEC 60947-3 || 4.6 A 230 V AC-3 3 phase IEC 60947-3 || 4.8 A 400 V AC-23A 3 phase IEC 60947-3 || 5.6 A 230 V AC-23A 3 phase IEC 60947-3 || 1 A 500 V AC-15 IEC 60947-5-1
- Rohs Exemption Information: Yes
- Reach Regulation: Free of Substances of Very High Concern above the threshold
- Poles Description: 1P
- Mechanical Durability: 1000000 cycles
- Warranty: 18 months
- Component Name: K1
- Ip Degree Of Protection: IP40 conforming to IEC 529
- Protective Treatment: TC
- Cad Overall Height: 45 mm
- Electrical Connection: captive screw clamp terminals flexible 2 x 1.5 mm squared || captive screw clamp terminals solid 1 x 2.5 mm squared
- Presentation Of Legend: with metallic, 2 - 0 - 1 black
- Presentation Of Legend: with metallic, 2 - 0 - 1 black
- Ambient Air Temperature For Storage: -40-70 °C
- Mercury Free: Yes
- Fixing Mode: multifixing
- Switching Positions: right: 0° - 45° || left: 0° - 315°
- Positive Opening: with
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation: X
- Toxic Heavy Metal Free: Yes
- Environmental Disclosure: ENVPEP071103EN_V1
- [Ith] Conventional Free Air Thermal Current: 0
- Type Of Operator: Black handle 35 mm
- Rotary Handle Padlocking: without
- Product Certifications: CSA 240 V 3 hp 3 phase 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phase
Specs
–
| Warranty: | 18 Months |
|---|---|
| Amperage: | 12 |
