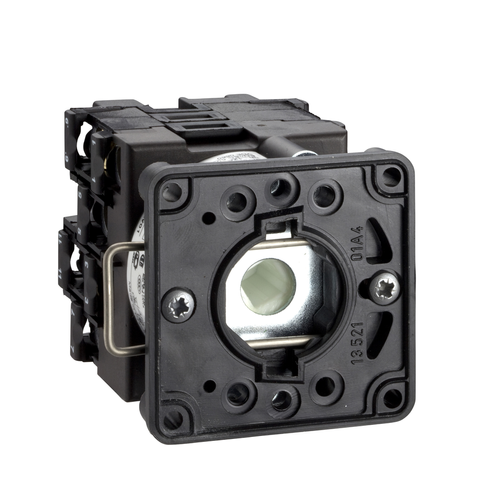

Harmony K Body for Stepping Switch, 1 Pole, 4 Steps (12A, 45 Deg)

This Harmony K1 body for stepping switch has 1 pole (1P). It also has a rating of 12A and a screw clamp mounting mode. It has a 45 degree between its switching positions. It is designed to fit in 16-22mm cutout, ensuring compatibility when installing in pre-existing machinery.

• Electrical Connection: captive screw clamp terminals flexible 2 x 1.5 mm squared || captive screw clamp terminals solid 1 x 2.5 mm squared
• Warranty: 18 months
• Positive Opening: with
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Rated Operational Power In W: 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3 || 1100 W AC-3, 230 V 3 phase IEC 947-3 || 1500 W AC-23A, 230 V 3 phase IEC 947-3 || 1500 W AC-3, 400 V 1 phase IEC 947-3 || 1500 W AC-3, 400 V 3 phase IEC 947-3 || 1500 W AC-3, 500 V 3 phase IEC 947-3 || 1500 W AC-3, 690 V 3 phase IEC 947-3 || 2200 W AC-23A, 400 V 3 phase IEC 947-3 || 2200 W AC-23A, 500 V 3 phase IEC 947-3 || 2200 W AC-23A, 690 V 3 phase IEC 947-3 || 4800 W AC-21, 230 V 3 phase IEC 947-3 || 600 W AC-3, 230 V 1 phase IEC 947-3 || 8300 W AC-21, 400 V 3 phase IEC 947-3
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Protective Treatment: TC
• Component Name: K1
• China Rohs Regulation: X
• Product Certifications: CSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phase 2 || UL 240 V 1 hp 3 phase || UL 240 V 0.33 hp 1 phase 2
• Mounting Location: front
• Ambient Air Temperature For Operation: -25-55 °C
• Bezel Material: plastic
• Off Position: without Off position
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Mechanical Durability: 1000000 cycles
• Contact Operation: slow-break
• Net Weight: 0.11 kg
• Short-Circuit Current: 10000 A
• [Ie] Rated Operational Current Ac: 1.8 A 690 V AC-3 3 phase IEC 947-3 || 2.8 A 500 V AC-3 3 phase IEC 947-3 || 2.8 A 690 V AC-23A 3 phase IEC 947-3 || 3.3 A 400 V AC-3 3 phase IEC 947-3 || 3.8 A 500 V AC-23A 3 phase IEC 947-3 || 4.6 A 230 V AC-3 3 phase IEC 947-3 || 4.8 A 400 V AC-23A 3 phase IEC 947-3 || 5.6 A 230 V AC-23A 3 phase IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1
• Sub-Assembly Composition: contact blocks + fixing plate
• Reach Free Of Svhc: Yes
• Switching Angle: 45 °
• Fixing Mode: 22 mm hole
• Circularity Profile: N/A
• Mercury Free: Yes
• Range Of Product: Harmony K
• Rohs Exemption Information: Yes
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Standards: IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
• Maximum Operating Rate: 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
• Ambient Air Temperature For Storage: -40-70 °C
• [Ithe] Conventional Enclosed Thermal Current: 0.416666666666667
• [Ith] Conventional Free Air Thermal Current: 0
• Shock Resistance: 30 gn IEC 68-2-27
• Product Or Component Type: cam switch body
• Product Or Component Type: cam switch body
• Cam Switch Function: stepping switch
• [Ui] Rated Insulation Voltage: 690 V 3)IEC 60947-1
• Poles Description: 1P
• Short-Circuit Protection: 16 A cartridge fuse gG
• [Uimp] Rated Impulse Withstand Voltage: 4 kV in isolating function || 6 kV IEC 947-1
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Electrical Durability: 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
• Environmental Disclosure: ENVPEP071103EN_V1
• Switching Positions: right: 0° - 45° - 90° - 135°
• Number Of Steps: 4
• Vibration Resistance: 5 gn 10-150 Hz)IEC 68-2-6
