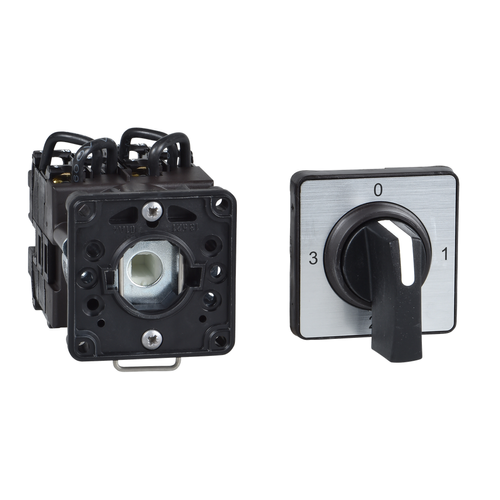

Harmony K Cam Ammeter Switch, 22mm, 3 Steps + Position 0 (12A, 90 Deg)

This K1 ammeter switch is ideal for switching between phase current measurements on a switchboard, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs in a 22mm hole. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.

• [Ie] Rated Operational Current Ac: 1 A 500 V AC-15 IEC 60947-5-1 || 4.8 A 400 V AC-23A 3 phase IEC 60947-3 || 5.6 A 230 V AC-23A 3 phase IEC 60947-3 || 2 A 400 V AC-15 IEC 60947-5-1 || 3 A 230 V AC-15 IEC 60947-5-1 || 1.8 A 690 V AC-3 3 phase IEC 60947-3 || 2.8 A 500 V AC-3 3 phase IEC 60947-3 || 2.8 A 690 V AC-23A 3 phase IEC 60947-3 || 3.3 A 400 V AC-3 3 phase IEC 60947-3 || 3.8 A 500 V AC-23A 3 phase IEC 60947-3 || 4.6 A 230 V AC-3 3 phase IEC 60947-3
• Type Of Operator: Black handle 35 mm
• Warranty: 18 months
• [Uimp] Rated Impulse Withstand Voltage: 4 kV in isolating function || 6 kV IEC 60947-1
• [Ithe] Conventional Enclosed Thermal Current: 0.416666666666667
• Contact Operation: slow-break
• China Rohs Regulation: X
• Electrical Durability: 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
• Range Of Product: Harmony K
• Positive Opening: with
• Toxic Heavy Metal Free: Yes
• Mercury Free: Yes
• Product Mounting: front mounting
• Cad Overall Height: 50 mm
• Off Position: with Off position
• Short-Circuit Current: 10000 A
• Cad Overall Depth: 69 mm
• Product Certifications: CSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phase 2 || UL 240 V 1 hp 3 phase || UL 240 V 0.33 hp 1 phase 2
• Fixing Mode: 22 mm hole
• Product Or Component Type: complete cam switch
• Presentation Of Legend: with metallic, 0 - L1 - L2 - L3 black
• Mechanical Durability: 1000000 cycles
• Sustainable Offer Status: Green Premium product
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• [Ith] Conventional Free Air Thermal Current: 0
• Shock Resistance: 30 gn IEC 68-2-27
• Rated Operational Power In W: 10500 W AC-21, 500...660 V 3 phase IEC 60947-3 || 2200 W AC-23A, 690 V 3 phase IEC 60947-3 || 4800 W AC-21, 230 V 3 phase IEC 60947-3 || 600 W AC-3, 230 V 1 phase IEC 60947-3 || 8300 W AC-21, 400 V 3 phase IEC 60947-3 || 1100 W AC-3, 230 V 3 phase IEC 60947-3 || 1500 W AC-23A, 230 V 3 phase IEC 60947-3 || 1500 W AC-3, 400 V 1 phase IEC 60947-3 || 1500 W AC-3, 400 V 3 phase IEC 60947-3 || 1500 W AC-3, 500 V 3 phase IEC 60947-3 || 1500 W AC-3, 690 V 3 phase IEC 60947-3 || 2200 W AC-23A, 400 V 3 phase IEC 60947-3 || 2200 W AC-23A, 500 V 3 phase IEC 60947-3
• Reach Free Of Svhc: Yes
• Return: without
• Circularity Profile: N/A
• Ambient Air Temperature For Operation: -25-55 °C
• [Ui] Rated Insulation Voltage: 690 V 3)IEC 60947-1
• Protective Treatment: TC
• Net Weight: 0.19 kg
• Switching Angle: 90 °
• Switching Positions: right: 0° - 90° - 180° - 270°
• Vibration Resistance: 5 gn 10-150 Hz)IEC 68-2-6
• Vibration Resistance: 5 gn 10-150 Hz)IEC 68-2-6
• Cam Switch Function: ammeter switch
• Component Name: K1
• Electrical Connection: captive screw clamp terminals flexible 2 x 1.5 mm squared || captive screw clamp terminals solid 1 x 2.5 mm squared
• Ip Degree Of Protection: IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
• Cad Overall Width: 45 mm
• Cam Switch Head Type: with front plate 45 x 45 mm
• Short-Circuit Protection: 16 A cartridge fuse gG
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Rohs Exemption Information: Yes
• Standards: CENELEC EN 50013 || EN/IEC 60947-3 power circuit || EN/IEC 60947-5-1 control circuit
• Type Of Measurement: for 3 circuits
• Reach Regulation: Free of Substances of Very High Concern above the threshold
