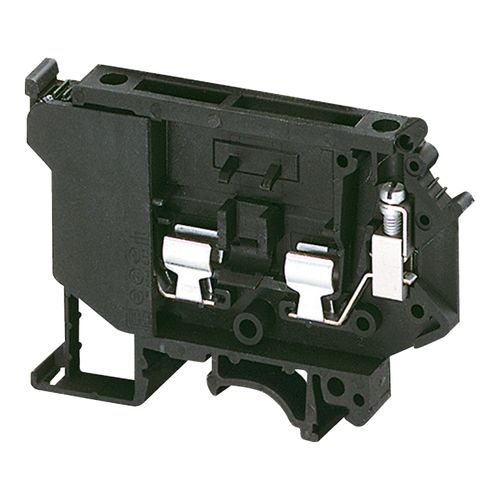

1-Pole 500V 6.3 Amp -40 To 266°F DIN Rail Mount Polyamide Fused Terminal Block With 110-250V LED Indicator, 3 Contacts, 26 To 10 AWG, 56-1/2mm High, NSYTRV42SF5LA
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Description
Linergy TR is terminal block for Fuse disconnect type. It belongs to linergy fuse disconnect terminal block with 4 mm² nominal cross section. The rated operational voltage is 500V conforming to CSA/UL and 600V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1 and 10A conforming to CSA and cURus. It has Black surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, LR, GL, IEC-Ex).
