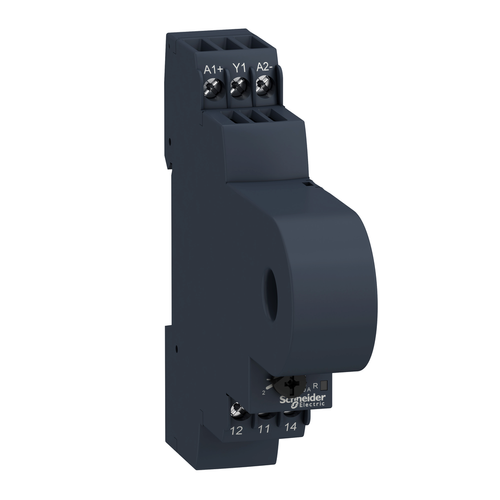

Harmony Current Control Relay, Overcurrent Function (5A, 1 CO, 250 VAC/DC)

This Harmony RM17-J control relay allows monitoring of current control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• [Ui] Rated Insulation Voltage: 400 V IEC 60664-1
• Dielectric Test Voltage: 2 kV AC 50 Hz
• Contacts Type And Composition: 1 C/O
• Measurement Error: +/- 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Run-Up Delay At Power-Up: 0.5 s
• Mechanical Durability: 30000000 cycles
• Standards: IEC 60255-6
• Maximum Power Consumption In W: 1 W
• China Rohs Regulation: X
• Measurement Range: 2...20 A current
• Control Circuit Voltage Limits: 15 % + 10 % Un
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Polarity: yes DC
• Maximum Power Consumption In Va: 3 VA
• Electrical Durability: 100000 cycles
• Contacts Material: cadmium free
• Mercury Free: Yes
• Range Of Product: Harmony Control Relays
• Relay Name: RM17JC
• Warranty: 18 months
• Overvoltage Category: III IEC 60664-1
• Insulation Resistance: > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
• Time Delay Type: without
• Sustainable Offer Status: Green Premium product
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relay Type: current control relay
• Response Time: < 200 ms (in the event of a fault)
• Minimum Switching Current: 10 mA 5 V DC
• Product Or Component Type: current control relay
• Supply Voltage Limits: 20.4-264 V AC/DC
• Insulation: between supply and measurement
• Threshold Setting: 10...100 %
• Environmental Disclosure: ENVPEP1504008EN
• Tightening Torque: 0.6-1 N.m IEC 60947-1
• Marking: CE : 73/23/EEC || CE : EMC 89/336/EEC
• Electromagnetic Compatibility: emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 61000-6-2
• Electromagnetic Compatibility: emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 61000-6-2
• Mounting Support: 35 mm symmetrical DIN rail conforming to IEC 60715
• Immunity To Microbreaks: 10 ms
• Connections - Terminals: screw terminals, 1 x 0.5...1 x 4 mm squared AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm squared AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm squared AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm squared AWG 24...AWG 16) flexible with cable end
• Switching Capacity In Va: 1250 VA
• Operating Rate: <= 360 operations/hour full load
• Ambient Air Temperature For Operation: -20-50 °C
• Non-Dissipating Shock Wave: 4 kV
• Rohs Exemption Information: Yes
• Hysteresis: 15-15 % fixed threshold setting
• Output Contacts: 1 C/O
• Width: 17.5 mm
• Repeat Accuracy: +/- 0.5 % input and measurement circuit
• Relative Humidity: 95-95 % 55-55 °C IEC 60068-2-30
