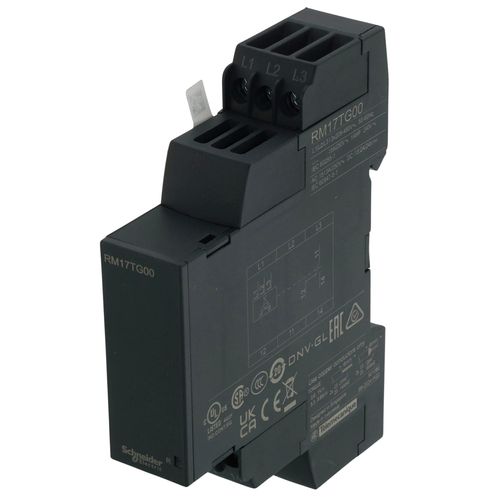

Harmony Control Relay w/ Screw Connectors, 3-Phase (5A, 1 CO, 208-480 VAC)

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Relay Monitored Parameters: phase sequence || phase failure detection (2 or more phase cut)
• Voltage Detection Threshold: < 100 V AC
• Housing Material: self-extinguishing plastic
• Mounting Support: 35 mm symmetrical DIN rail conforming to IEC 60715
• Rohs Exemption Information: Yes
• Maximum Switching Voltage: 250 V AC || 250 V DC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Ambient Air Temperature For Operation: -20-50 °C
• Sustainable Offer Status: Green Premium product
• Product Specific Application: for 3-phase supply
• [Uc] Control Circuit Voltage: 208...480 V
• Relay Name: RM17TG
• Power Consumption In Va: 0-22 VA 400 V AC 50 Hz
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 95-95 % 55-55 °C IEC 60068-2-30
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Product Certifications: C-tick || GL || CSA || UL || GOST
• Supply Frequency: 50/60 Hz +/- 10 %
• Product Or Component Type: 3-phase control relay
• Minimum Switching Current: 10 mA 5 V DC
• Electrical Durability: 100000 cycles
• Voltage Range: 183...528 V
• Width: 17.5 mm
• Dielectric Test Voltage: 2 kV AC 50 Hz, 1 min
• [Ui] Rated Insulation Voltage: 400 V IEC 60664-1
• Control Circuit Frequency: 50...60 Hz +/- 10 %
• Net Weight: 0.13 kg
• Overvoltage Category: III IEC 60664-1
• Measurement Range: 208...480 V voltage AC
• Standards: IEC 60255-1
• Mechanical Durability: 30000000 cycles
• Mercury Free: Yes
• Control Circuit Voltage Limits: 12 % + 10 % Un
• Measurement Voltage Limits: 183-528 V AC
• Range Of Product: Harmony Control Relays
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection: IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Ip Degree Of Protection: IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Environmental Disclosure: ENVPEP1504008EN
• Nominal Output Current: 0.208333333333333
• Electromagnetic Compatibility: emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to IEC 61000-6-2
• Vibration Resistance: 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
• Output Contacts: 1 C/O
• Shock Resistance: 15 gn 11 ms IEC 60255-21-1
• Tightening Torque: 0.6-1 N.m IEC 60947-1
• Switching Capacity In Va: 1250 VA
• Warranty: 18 months
• Marking: CE
• Run-Up Delay At Power-Up: 650 ms
• Pollution Degree: 3 IEC 60664-1
• Relay Type: control relay
