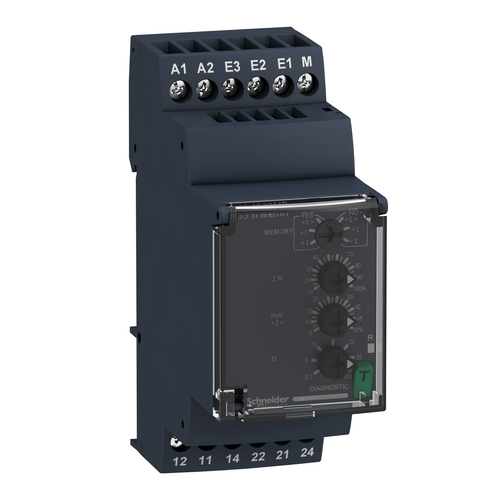

Harmony Modular Measurement & Relay, 0.15-15A (5A, 2 CO, 24-240 VAC/DC)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$146.51 each
Out of Stock
Get it Thu, Apr 3 - Thu, Apr 10
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24-240 VAC/DC
5 Amps
18 Months Warranty
Description
–
- Circularity Profile: ENVEOLI1504008EN
- Maximum Measuring Cycle: 100 ms measurement cycle as true rms value
- Resistance Across Terminals: 0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals
- Relay Name: RM35JA
- Threshold Setting: 10...100 %
- Relay Monitored Parameters: overcurrent or undercurrent in window mode || overcurrent or undercurrent detection
- Environmental Characteristic: 3K3 C
- Immunity To Microbreaks: 50 ms
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product: Harmony Relay
- Maximum Power Consumption In Va: 3.5 VA
- Environmental Disclosure: ENVPEP1504008EN
- Insulation Resistance: > 100 MOhm 500 V DC IEC 60255-27
- Safety Reliability Data: MTTFd = 296.8 years || B10d = 270000
- Ip Degree Of Protection: IP20 IEC 60529 terminals) || IP50 IEC 60529 front panel) || IP30 IEC 60529 housing)
- Repeat Accuracy: +/- 0.5 % input and measurement circuit || +/- 2 % time delay
- Pollution Degree: 3 IEC 60664-1 || 3 UL 508
- Internal Input Resistance: 0.015 Ohm || 0.005 Ohm || 0.05 Ohm
- Nominal Output Current: 0.333333333333333
- Maximum Power Consumption In W: 1.5 W DC
- Electrical Durability: 100000 cycles
- China Rohs Regulation: X
- Reset Time: 1500 ms at maximum voltage
- Product Certifications: CE || UL || CSA
- Product Or Component Type: modular measurement and control relays
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- Electromagnetic Compatibility: immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for industrial environments conforming to IEC 61000-6-4 || electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 || surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 || conducted and radiated emissions class B group 1 conforming to CISPR 11 || conducted and radiated emissions class B conforming to CISPR 22 || emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3
- Sustainable Offer Status: Green Premium product
- Minimum Switching Current: 10 mA 5 V DC
- Standards: IEC 60255-1
- Utilisation Category: AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
- [Us] Rated Supply Voltage: 24...240 V AC/DC 50/60 Hz +/- 10 %
- Maximum Switching Current: 8 A AC
- Tightening Torque: 0.6-1 N.m IEC 60947-1
- Net Weight: 0.12 kg
- Relative Humidity: 93-97 % 25-55 °C IEC 60068-2-30
- Shock Resistance: 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Shock Resistance: 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
- Run-Up Delay At Power-Up: 0.3 s
- Setting Accuracy Of The Switching Threshold: +/- 10 % of the full scale
- Supply Voltage Limits: 20.4-264 V AC/DC
- Vibration Resistance: 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Insulation: between supply and measurement
- Setting Accuracy Of Time Delay: 0.916666666666667
- Dielectric Test Voltage: 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Ambient Air Temperature For Storage: -40-70 °C
- Switching Threshold Drift: <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range
- Switching Capacity In Va: 2000 VA
- Time Delay Type: adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
- Mounting Support: 35 mm DIN rail conforming to IEC 60715
- Connections - Terminals: screw terminals, 2 x 0.5...2 x 2.5 mm squared AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm squared AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm squared AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm squared AWG 24...AWG 14) flexible with cable end
Specs
–
| Amperage: | 5 |
|---|---|
| Warranty: | 18 Months |
| Voltage: | 24-240 VAC/DC |
