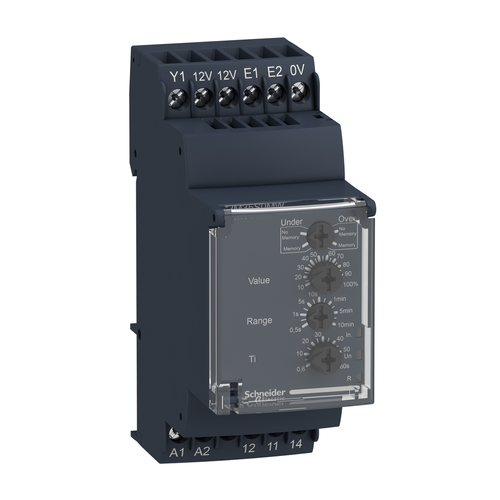

Harmony Speed Control Relay (5A, 1 CO, 24-240 VAC/DC)

This Harmony RM35-S control relay allows monitoring of speed control. This modular control relay is ideal for monitoring of electrical values and speed variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Circularity Profile: ENVEOLI1504008EN
• Standards: NF EN 60255-6 || IEC 60255-6
• Polarity: reversible polarity on DC supply
• Rohs Exemption Information: Yes
• Width: 35 mm
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Measurement Error: +/- 0.1 %/°C with temperature variation || < +/- 1 % over the whole range with voltage variation
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Tightening Torque: 0.6-1 N.m IEC 60947-1
• China Rohs Regulation: X
• Output Contacts: 1 C/O
• Hysteresis: 5-5 % threshold
• Mercury Free: Yes
• Shock Resistance: 15 gn 11 ms IEC 60255-21-1
• Maximum Power Consumption In Va: 5 VA AC
• Mounting Support: 35 mm symmetrical DIN rail conforming to IEC 60715
• Impulse Duration: >= 5 ms high state || >= 5 ms low state
• Pollution Degree: 3 IEC 60664-1
• Relay Monitored Parameters: overspeed || underspeed
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Measurement Range: 0.05...0.5 s || 0.5...5 min || 1...10 min || 1...10 s || 0.5...5 s || 0.1...1 s || 0.1...1 min
• Product Certifications: C-tick || GOST || UL || GL || CSA
• Relay Name: RM35S
• Electromagnetic Compatibility: emission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
• Ambient Air Temperature For Operation: -20-50 °C
• Relative Humidity: 95-95 % 55-55 °C IEC 60068-2-30
• Input Compatibility: 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA || NAMUR sensor (E2), 12 V, 1.5 kOhm || voltage input (E1), 0...30 V, 9.5 kOhm >= 4.5 V <= 1 V || volt-free contact input (E1), 12 V, 9.5 kOhm
• Ip Degree Of Protection: IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Relay Type: speed control relays
• Switching Capacity In Va: 1250 VA
• Insulation Resistance: > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
• Maximum Switching Voltage: 250 V AC/DC
• [Us] Rated Supply Voltage: 11.5...12.5 V
• Operating Rate: <= 360 operations/hour full load
• Connections - Terminals: screw terminals, 1 x 0.5...1 x 4 mm squared AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm squared AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm squared AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm squared AWG 24...AWG 16) flexible with cable end
• Run-Up Delay At Power-Up: 0.05 s
• Run-Up Delay At Power-Up: 0.05 s
• Dielectric Test Voltage: 2 kV AC 50 Hz
• [Ui] Rated Insulation Voltage: 250 V IEC 60664-1
• Warranty: 18 months
• Threshold Setting: 10...100 %
• Range Of Product: Harmony Control Relays
• Vibration Resistance: 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
• Housing Material: self-extinguishing plastic
• Non-Dissipating Shock Wave: 4 kV
• Environmental Disclosure: ENVPEP1504008EN
• Control Circuit Voltage Limits: 15 % + 10 % Un
• Operating Position: any position without derating
• Maximum Supply Current For Sensors: 40 mA < 24 V AC 25 °C || 40 mA < 24 V DC 25 °C || 50 mA 24...240 V AC || 50 mA 24...240 V DC
• Repeat Accuracy: +/- 0.5 % input and measurement circuit || +/- 0.5 % time delay
