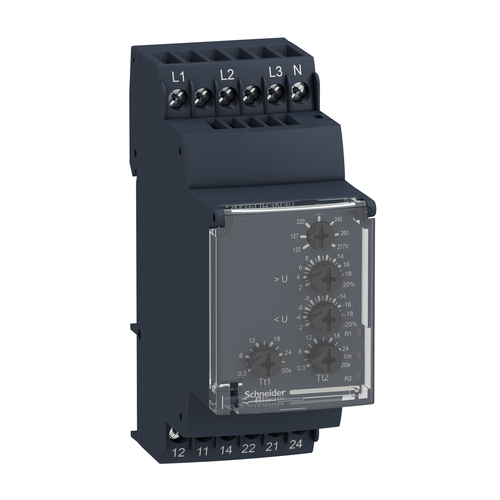

Harmony Voltage Control Relay (5A, 2 NO, 120-277 VAC)

This Harmony RM35-UB allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

• Safety Reliability Data: B10d = 470000 || MTTFd = 502.2 years
• Width: 35 mm
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Contacts Type And Composition: 2 C/O
• Electrical Durability: 10000 cycles
• Relay Name: RM35UB3
• [Ui] Rated Insulation Voltage: 400 V IEC 60664-1
• Mercury Free: Yes
• Ambient Air Temperature For Storage: -40-70 °C
• Overvoltage Category: III IEC 60664-1
• Directives: 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
• Vibration Resistance: 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
• Repeat Accuracy: +/- 0.5 % input and measurement circuit || +/- 1 % time delay
• Measurement Range: 114...329 V voltage AC 50/60 Hz
• Reset Time: 1500 ms time delay
• Product Or Component Type: voltage control relay
• Sustainable Offer Status: Green Premium product
• Maximum Switching Current: 5 A AC/DC
• Switching Capacity In Va: 1250 VA
• Relay Type: voltage control relay
• Product Specific Application: for 3-phase supply
• Measurement Accuracy: +/- 10 % of the full scale value
• China Rohs Regulation: X
• Functionality: overvoltage and undervoltage detection
• Environmental Disclosure: ENVPEP1504008EN
• Tightening Torque: 0.6-1 N.m IEC 60947-1
• Ambient Air Temperature For Operation: -20-50 °C
• Relay Monitored Parameters: absence of neutral || overvoltage and undervoltage between phases || overvoltage and undervoltage between neutral
• Control Circuit Frequency: 50...60 Hz +/- 15 %
• Circularity Profile: ENVEOLI1504008EN
• Connections - Terminals: screw terminals, 1 x 0.5...1 x 4 mm squared AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm squared AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm squared AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm squared AWG 24...AWG 16) flexible with cable end
• Ip Degree Of Protection: IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Time Delay Type: adjustable 0.3...30 s, 0 + 10 % on crossing the threshold
• Operating Position: any position without derating
• Local Signalling: for power ON LED (green) || for relay ON LED (yellow)
• Response Time: < 200 ms (in the event of a fault)
• Mechanical Durability: 30000000 cycles
• Mechanical Durability: 30000000 cycles
• Net Weight: 0.08 kg
• Range Of Product: Harmony Control Relays
• Rohs Exemption Information: Yes
• Housing Material: self-extinguishing plastic
• Insulation Resistance: > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
• Power Consumption In Va: 0-3.9 VA AC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Compatibility Code: RM3
• Quality Labels: CE
• Non-Dissipating Shock Wave: 4 kV
• Standards: IEC 60255-1
• Warranty: 18 months
• Run-Up Delay At Power-Up: 650 ms
