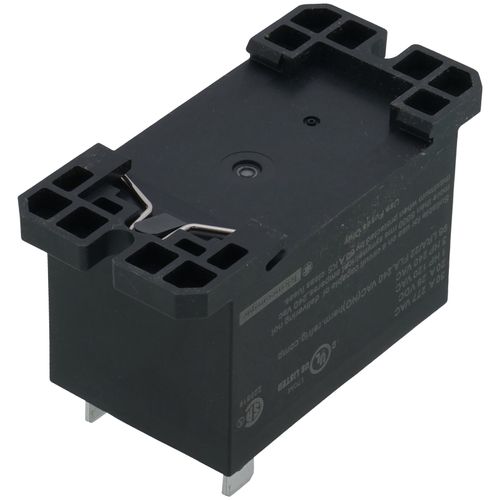

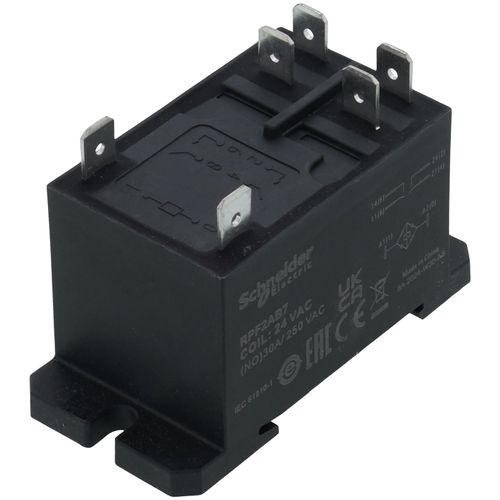

Harmony Electromechanical Power Relay, DIN Rail or Panel Mount (30A, 2 NO, 24 VAC)

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 24V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

• Reset Time: 25 ms
• Protection Category: RT II
• Maximum Switching Capacity: 7500 VA/700 W
• Standards: UL 508 || IEC 61810-1 || CSA C22.2 No 14

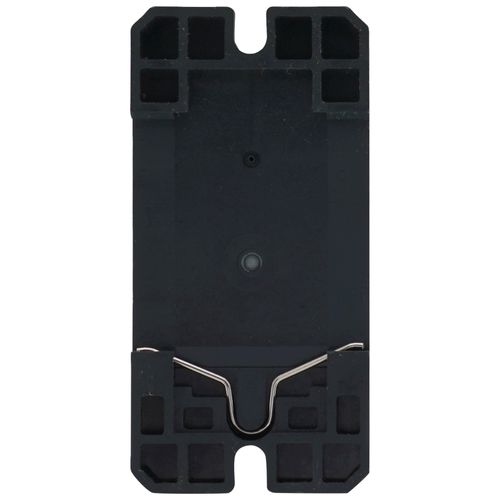

• Mounting Support: DIN rail || panel
• Warranty: 18 months
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ambient Air Temperature For Operation: -40-55 °C
• Cad Overall Width: 33.7 mm
• Contacts Material: silver tin oxide
• Mechanical Durability: 5000000 cycles
• Contacts Type And Composition: 2 NO
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Minimum Switching Capacity: 6000 mW 500 mA / 12 V NO
• Drop-Out Voltage Threshold: >= 0.15 Uc
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• [Ui] Rated Insulation Voltage: 250 V IEC || 300 V UL
• Sustainable Offer Status: Green Premium product
• Vibration Resistance: 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Circularity Profile: N/A
• Shape Of Pin: flat
• Rohs Exemption Information: Yes
• Environmental Disclosure: ENVPEP130203EN
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Test Levels: level A group mounting
• Control Type: without lockable test button
• [Uc] Control Circuit Voltage: 24 V AC 50/60 Hz
• China Rohs Regulation: X
• Operating Rate: <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
• Electrical Durability: 100000 cycles resistive
• Cad Overall Height: 68.5 mm
• Load Current: 25 A 28 V DC || 30 A 250 V AC
• Cad Overall Depth: 39.2 mm
• Average Resistance: 170 Ohm at 20 °C +/- 15 %
• [Uimp] Rated Impulse Withstand Voltage: 4 kV 1.2/50 µs
• [Ithe] Conventional Enclosed Thermal Current: 25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays
• Product Certifications: UL || CSA || GOST || CE
• Product Certifications: UL || CSA || GOST || CE
• Product Or Component Type: DIN rail/panel mount relay
• Device Presentation: complete product
• Net Weight: 0.082 kg
• Shock Resistance: 10 gnin operation || 30 gnnot operating
• Ambient Air Temperature For Storage: -40-85 °C
• Device Short Name: RPF
• Reach Free Of Svhc: Yes
• Maximum Switching Voltage: 250 V IEC
• Utilisation Coefficient: 0.1
• Safety Reliability Data: B10d = 100000
• Ip Degree Of Protection: IP40 conforming to IEC 60529
• Operating Position: any position
• Control Circuit Voltage Limits: 19.2...26.4 V
