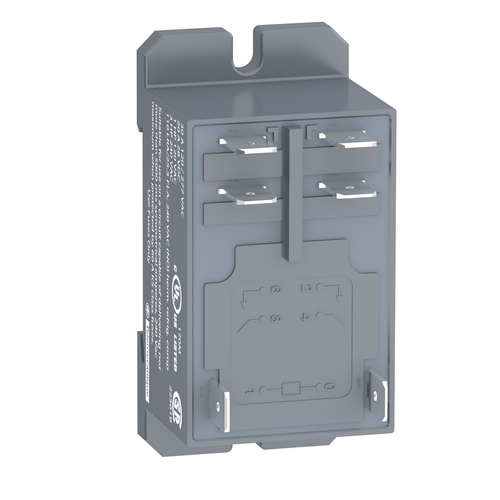

Harmony Electromechanical Power Relay, DIN Rail or Panel Mount (30A, 2 NO, 230 VAC)

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 230V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

• Test Levels: level A group mounting
• Electrical Durability: 100000 cycles resistive
• Operating Rate: <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
• Reset Time: 25 ms
• Operating Position: any position
• Minimum Switching Capacity: 6000 mW 500 mA / 12 V NO
• Pollution Degree: 3
• Ip Degree Of Protection: IP40 conforming to IEC 60529
• Device Presentation: complete product
• Operating Time: 25 ms
• [Ithe] Conventional Enclosed Thermal Current: 25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays
• Ambient Air Temperature For Operation: -40-55 °C
• Vibration Resistance: 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Shock Resistance: 10 gnin operation || 30 gnnot operating
• Mechanical Durability: 5000000 cycles
• Cad Overall Depth: 39.2 mm
• Product Or Component Type: DIN rail/panel mount relay
• Safety Reliability Data: B10d = 100000
• [Ui] Rated Insulation Voltage: 250 V IEC || 300 V UL
• Average Consumption: 4 VA 60 Hz
• Cad Overall Width: 33.7 mm
• Shape Of Pin: flat
• Warranty: 18 months
• Dielectric Strength: 2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection
• Drop-Out Voltage Threshold: >= 0.15 Uc
• Load Current: 25 A 28 V DC || 30 A 250 V AC
• Circularity Profile: N/A
• Rohs Exemption Information: Yes
• Product Certifications: CSA || CE || GOST || UL
• Maximum Switching Capacity: 7500 VA/700 W
• [Uimp] Rated Impulse Withstand Voltage: 4 kV 1.2/50 µs
• [Uc] Control Circuit Voltage: 230 V AC 50/60 Hz
• Contacts Type And Composition: 2 NO
• Device Short Name: RPF
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Net Weight: 0.082 kg
• China Rohs Regulation: X
• China Rohs Regulation: X
• Standards: CSA C22.2 No 14 || IEC 61810-1 || UL 508
• Utilisation Coefficient: 0.1
• [Ie] Rated Operational Current: 30 A 277 V AC) NO UL || 20 A 28 V DC) NO UL || 30 A 250 V AC) NO IEC || 25 A 28 V DC) NO IEC
• Contacts Material: silver tin oxide
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Free Of Svhc: Yes
• Protection Category: RT II
• Control Type: without lockable test button
• Series Name: Power
• Mounting Support: panel || DIN rail
• Ambient Air Temperature For Storage: -40-85 °C
• Control Circuit Voltage Limits: 184...253 V
• Range Of Product: Harmony Electromechanical Relays
