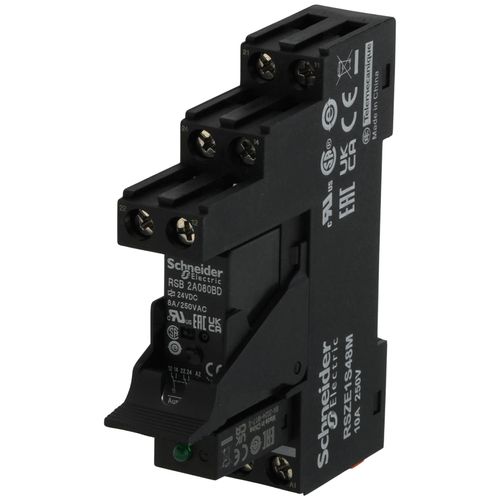

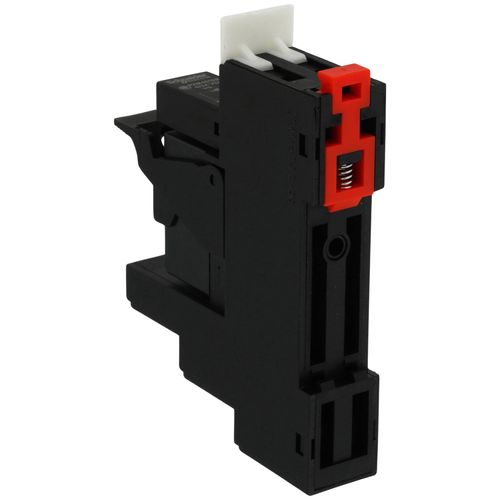

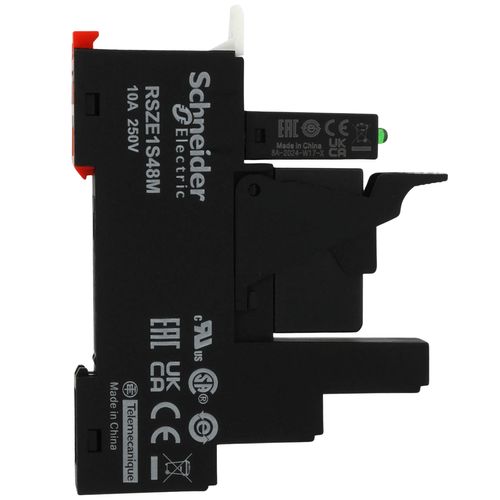

Harmony Electromechanical Interface Plug-In Relay, Pre-Assembled (8A, 2 CO w/ LED, 24 VDC)

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 8A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.

• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Standards: IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
• Safety Reliability Data: B10d = 100000
• Device Presentation: complete product
• Electrical Durability: 100000 cycles, 8 A at 250 V, AC-1 NO || 100000 cycles, 4 A at 250 V, AC-1 NC
• Contacts Type And Composition: 2 C/O
• Switching Voltage: 12 V
• Product Certifications: CE || UL || CSA || EAC
• [Uimp] Rated Impulse Withstand Voltage: 3.6 kV IEC 61000-4-5
• Warranty: 18 Months
• Control Type: Without
• Drop-Out Voltage Threshold: >= 0.1 Uc DC
• Minimum Switching Current: 10 mA
• Product Or Component Type: pre-assembled plug-in relay with socket
• Mercury Free: Yes
• Contacts Material: silver alloy (AgNi)
• Dielectric Strength: 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
• Shock Resistance: 10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
• Device Short Name: RSB
• [Uc] Control Circuit Voltage: 24 V DC
• Torque Value: 0.8 N.m || 7.0 lbf.in
• Contact Operation: standard
• Test Levels: level A group mounting
• Operating Time: 20 ms operating || 20 ms reset
• Environmental Disclosure: ENVPEP1406006EN
• Vibration Resistance: +/- 1 mm 10-55 Hz)IEC 60068-2-6
• Connections - Terminals: connector, 1 x 0.25...1 x 2.5 mm squared AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm squared AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm squared AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm squared AWG 20...AWG 16) solid without cable end
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Range Of Product: Harmony Electromechanical Relays
• Operating Position: any position
• Rohs Exemption Information: Yes
• Net Weight: 0.057 kg
• Load Current: 8 A 250 V AC || 8 A 28 V DC
• Mechanical Durability: 30000000 cycles
• Ambient Air Temperature For Operation: -40-85 °C DC)
• Series Name: interface relay
• Series Name: interface relay
• Ambient Air Temperature For Storage: -40-85 °C
• [Ue] Rated Operational Voltage: 19.2...26.4 V DC
• Protection Category: RT I
• Operating Rate: <= 600 cycles/hour under load || <= 18000 cycles/hour no-load
• Circularity Profile: N/A
• [Ui] Rated Insulation Voltage: 400 V IEC 60947
• Ip Degree Of Protection: IP20 conforming to IEC 60529
• Status Led: 1 LED
• Sale Per Indivisible Quantity: 30
• Minimum Switching Capacity: 120 mW 10 mA, 12 V
• Maximum Switching Voltage: 300 V DC IEC
• Average Resistance: 1440 Ohm DC 20 °C +/- 15 %
• [Ithe] Conventional Enclosed Thermal Current: 8 A -40-40 °C
