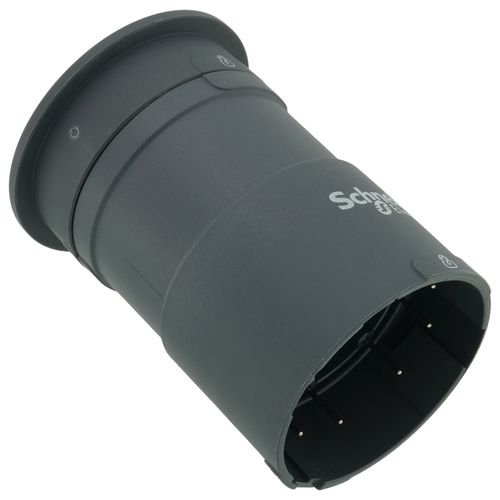

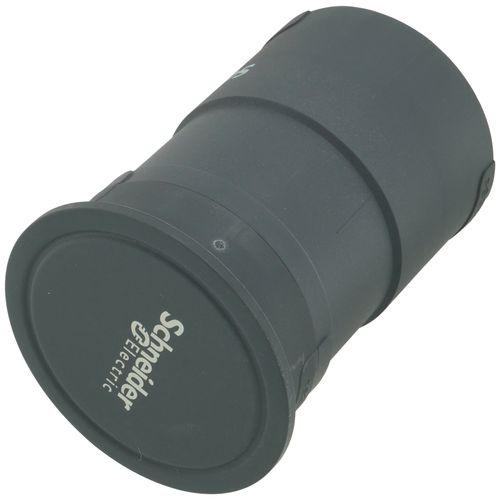

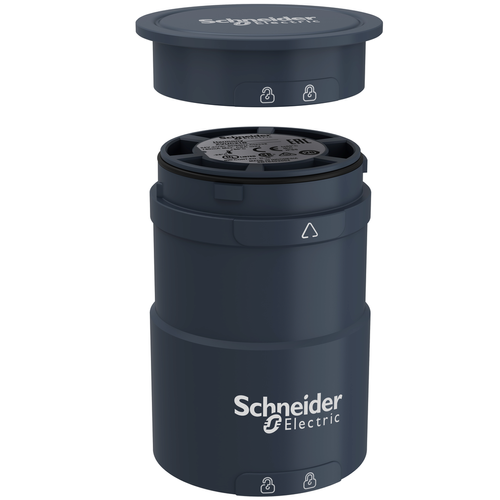

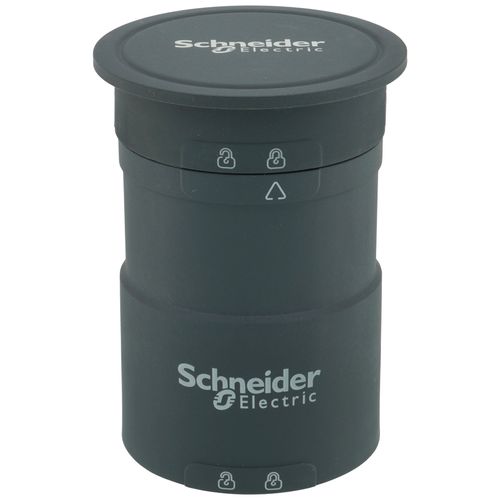

Harmony XVU Base Unit w/ Top Cover for Modular Tower Lights - Black (24 VAC/DC)

This base unit with top cover is designed to be fitted with indicator bank to create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It allows clear display of the status of your machines. It complies with CSA, UL, RoHS, CE standards. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

• Environmental Disclosure: ENVPEP1403004EN
• Housing Colour: black
• Current Consumption: <= 400 mA
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) V-0 UL 94 || PC (polycarbonate) V-0 UL 94
• Product Certifications: CE || UL || CSA
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Mounting Diameter: 60 mm
• Ip Degree Of Protection: IP65
• Sustainable Offer Status: Green Premium product
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Rohs Exemption Information: Yes
• Range Of Product: Harmony XVU
• Length: 77 mm
• Circularity Profile: ENVEOLI1403004EN
• Vibration Resistance: 2 gn
• [Us] Rated Supply Voltage: 24 V AC/DC - 15...10 %
• Ambient Air Temperature For Storage: -40-70 °C
• Ambient Air Temperature For Operation: -25-50 °C
• Assembly Style: customer assembly, up to 5 units
• Product Or Component Type: modular tower light
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Kit Composition: base unit || cover
• China Rohs Regulation: X
• Net Weight: 0.11 kg
• Component Name: XVU
• Fixing Mode: direct or tube fixing
• Beacon Or Indicator Bank Unit Type: base unit
