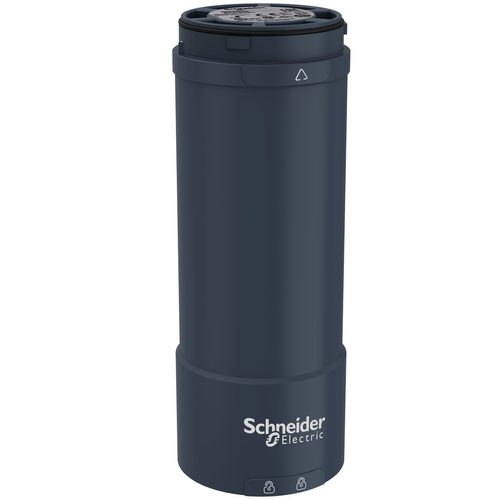

Harmony XVU Base Unit w/ Top Cover for Modular Tower Lights, PNP - Black (100-240 VAC/DC)

This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It it is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA, UL, RoHS, EAC, CE standards).

• Ip Degree Of Protection: IP65
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Current Consumption: <= 400 mA
• Assembly Style: customer assembly, up to 5 units
• Ambient Air Temperature For Storage: -20-65 °C
• Length: 151 mm
• Product Or Component Type: modular tower light
• Circularity Profile: ENVEOLI1403004EN
• Rohs Exemption Information: Yes
• Housing Colour: black
• Sustainable Offer Status: Green Premium product
• China Rohs Regulation: X
• Range Of Product: Harmony XVU
• Fixing Mode: direct or tube fixing
• [Us] Rated Supply Voltage: 100...240 V AC +/- 10 %
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Component Name: XVU
• Product Certifications: CE || CSA || UL || CCC
• Ambient Air Temperature For Operation: 0-50 °C
• Material: PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) V-0 UL 94 || PC (polycarbonate) V-0 UL 94
• Vibration Resistance: 2 gn
• Environmental Disclosure: ENVPEP1403004EN
• Electrical Shock Protection Class: class II on base unit IEC 61140
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Mercury Free: Yes
• Beacon Or Indicator Bank Unit Type: base unit
• Net Weight: 0.235 kg
• Kit Composition: base unit PNP) || cover
• Mounting Diameter: 60 mm
